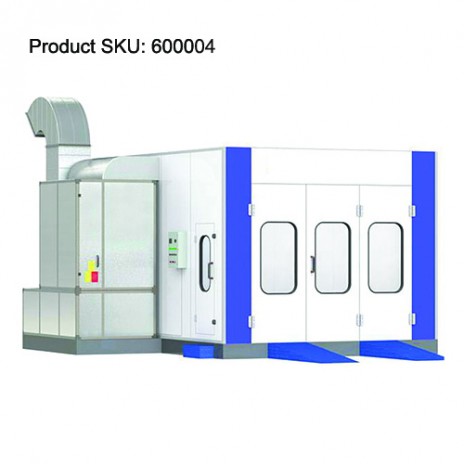

30KW cheap paint infrared spray booth 600004
| Infrared Spray Booth Room Structure | |
| Equipment Dimension | 699*556*333cm |
| External Room Dimension | 699*401*333cm |
| Internal Room Diemension | 687*389*265cm |
| Roof Meteral | 0.8mm galvanizing metal |
| Door Size | 300*260cm cleave door |
| Door Configuration | 1. Door latch |
| 2. Aluminum hinge | |
| 3. EPDM seal strip | |
| 4. Toughened glass type observation window | |
| 5. Pale grey color door | |
| Room Configuration | 1. Front pillar is aluminum pillar. |
| 2. Rear pillar is white powder coating alumium board. | |
| 3. Other parts are galvanized board. | |
| Base Configuration | 1. 280mm Height |
| 2. Front pillar is 1.5mm folded aluminum board | |
| 3. Side pillars are 1.2mm folded board. | |
| Wall Configuration | 1. Coated 0.426mm color steel board on surface. |
| 2. 58mm thermokeeping rock wool board in the wall. | |
| Brace | 80*40*2 rectangular brace. |
| Floor | 1. 2 rows 30*5 flat steel grille type bar. |
| 2. 3 rows 4mm tread plate. | |
| 3. Glass fibre paved down the grille typr bar. | |
| 4. Air flow change plate. | |
| Ramp | 2 Ramp and 1 Step. |
| Infrared Spray Booth Filtering System | |
| Ceiling Filter | Pre bag filter+Medium C600 filter |
| Air Exhausting Filter | Glass fiber filter |
| Filtration efficiency | 98% |
| Filter Frame | 1. Powder coating C type steel |
| 2. 1.5mm aluminum crossbeam | |
| 3. 1.2mm aluminum longeron | |
| Noise | ≤80 dB(A) |
| TSP valve | ≤1.5mg/m³ |
| Infrared Spray Booth Heating System | |
| Thermal exchanger | 1. 10 sets infrared halogen painting lamp |
| 2. Double doors | |
| 3. Stainless matal case | |
| 4. Mirror stainless reflecting board | |
| 5. Front metal shield | |
| 6. 4 sets on the side wall | |
| 7. 2 sets fixed on the rear wall | |
| 8. 3KW/set | |
| Temperture | 20-80°C |
| Heating time | (20°C-60°C) 10-18min |
| Heater Frame | 1. Section bar frame |
| 2. 1.2mm galvanized board on frame surface. | |
| Heat exchange efficiency | 90% |
| Infrared Tube Installed Power | 30KW |
| Infrared Spray Booth Lighting System | |
| Lamp | 1. 8 sets 4*36W side lamp oblique 45° Installed |
| 2. Philips lamp | |
| 3. Special rectifier | |
| LUX | ≥800 |
| Infrared Spray Booth Electrical Control System | |
| Power | 37.3KW |
| Electrical System | 1. Six-way control contactor |
| 2. Six way control radiator | |
| 3. Over current protection | |
| 4. Overload protection | |
| 5. Short circuit protection | |
| 6. Phase loss protection | |
| 7. Precision control box | |
| Infrared Spray Booth Air Supply System | |
| Blower | 2 units of 3KW Centrifugal air blowers |
| Spary measure | 3.3 kg/h |
| Blower Base | 1. Dimension 2500*1450*820 |
| 2. Air volume 20000 m³/h | |
| 3. Loaded Air flow 0.25m/s | |
| 4. Section bar frame | |
| 5. Pre bag filter | |
| Air duct | 1. 2 section 600*600*1250 air ducts |
| 2. 1 section 150° elbow air duct. | |
| 3. 0.8mm galvanized metal. | |
