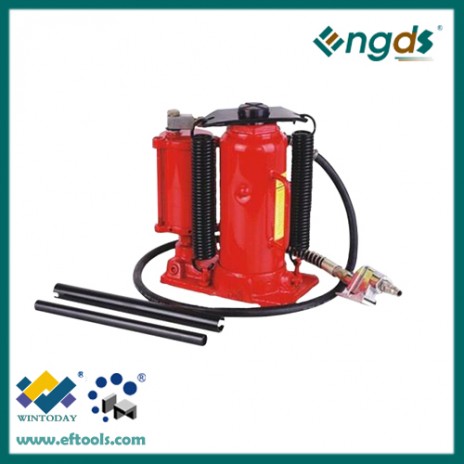

The air hydraulic jack uses compressed air as its air source,air pump the high pressure oil into cylinder,lifts the piston rod and adds carrying strength.There are five types fo the item,352016,352017,352018,352019,352020.
Air Hydraulic Jack Type and 12/20/22/32/50T Capacity (Load) Hydraulic Jack
Item# | Capacity | Min.H. | Max.H. | Adjust.H. | Lifting.H. | Package Size | G.W. | N.W. | Q'TY/20FCL |
352016 | 12T | 250mm | 495mm | 80mm | 165mm | 240x180x280mm | 11kg | 10kg | 1400pcs |
352017 | 20T | 260mm | 510mm | 80mm | 170mm | 260x200x280mm | 18kg | 17kg | 1000pcs |
352018 | 32T | 250mm | 405mm | / | 150mm | 290x220x270mm | 22kg | 21kg | 730pcs |
352019 | 50T | 270+25mm | 430+25mm | / | 160mm | 370x300x290mm | 35kg | 32kg | 700pcs |
352020 | 22T | 225+20mm | 435+100mm | 80mm | 130mm | 640x360x300mm | 38kg | 36kg | 400pcs |
