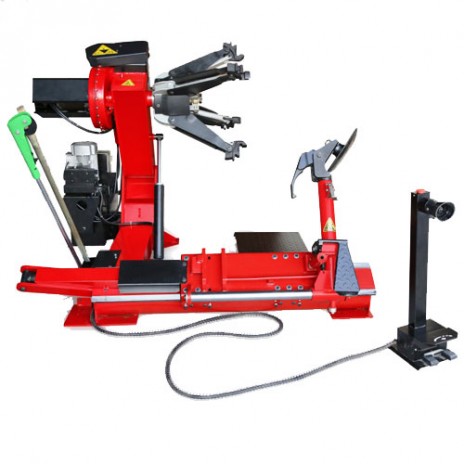

Automatic hydraulic tyre changer for truck 130001

Automatic hydraulic tyre changer for truck of description

Rim diameter:14''- 46''
Max.tire weight: 1500 kgs
Max.wheel diameter:2300 mm
Max.wheel width: 1065mm
Working pressure: <=130 bar
Working voltage:380 v
Gear box motor: 1.3 KW/1.5 KW
Hydraulic motor: 1.5 KW
Machine weight: 770 kgs

Automatic hydraulic tyre changer for truck of feature

1. Infinite regulation of the clamping force to be more smooth.
2. The rimm diameter can expand to 56" for changing truk, bus and OTR tyres.
3. The low-pressure and mobile operation on control panel to make it light and handy.
4. The hydraulic system is more smooth to controlled the tool bracket, lifting arm and gripper.
5. It is equipped with pendular assembly round plate assembly hook on the universal assembly arm.
6. We taken as a whole round of welding technology,then process to avoid deformation by weld.
