Beschreibung
Details

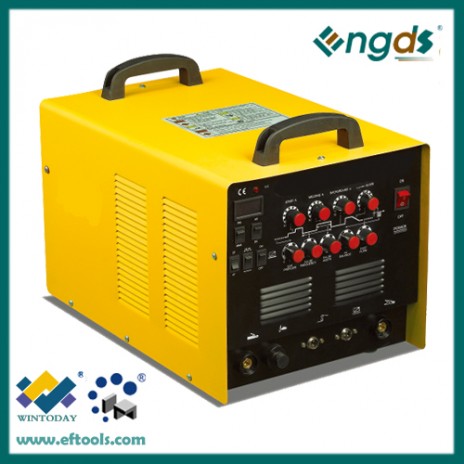

-Multi-functions:AC/DC MMA.AC/DC pulse TIG.
-Quality square wave power supply,short current zero-crossing time,stable arc.
-Super cleaning ability of oxide film,continuously adjustable cleaning width,bright and beautiful weld seam.Especially adapted to weld aluminum,magnesium and its alloy materials.
| Item# | 353175 | 353176 |
| Input Power | 1ph AC220±15%V | 1ph AC220±15%V |
| Frequency | 50/60HZ | 50/60HZ |
| Rated input current | 24.6A | 28A |
| Output current | TIG 10-200A/MMA 10-150A | TIG 10-220A/MMA 10-170A |
| No-load voltage | 56V | 56V |
| Rated duty voltage | TIG 18V/MMA 26V | TIG 18.8V/MMA 26.8V |
| Pulse Frequency | 0.5-5HZ | 0.5-5HZ |
| Pulse Width | 10-90% | 10-90% |
| AC Balance | 20-80% | 20-80% |
| Current Fall Time(4T) | 0-10s | 0-10s |
| Remote control | Yes | Yes |
| Arc initiation way | HF | HF |
| Efficiency | 85% | 85% |
| Duty cycle | 60% | 60% |
| Power factor | 0.73 | 0.73 |
| Insulation class | F | F |
| Protection class | IP21S | IP21S |
| Weight | 20kg | 20kg |
| Size | 600x440x415mm | 600x440x415mm |
Packing&Shipping
According to the customer's need,we ship goods by air,sea and express.
Packiing:Standard Carton.
Delivery Detail:30-35 days after received the 30 percent deposit.
