Beschreibung
Details

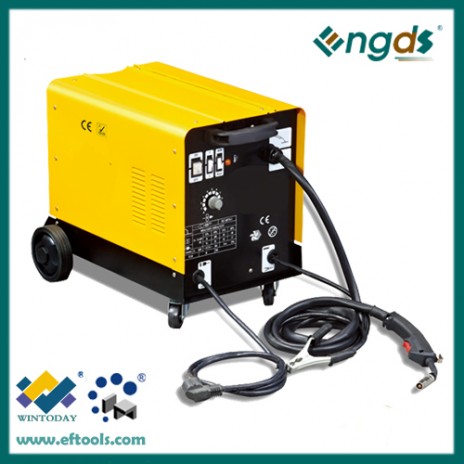

-Single-phase,portable,fan-cooling and wire welding machine for flux(no gas) and MIG/MAG(gas) welding.
-With thermal protection,complete with MIG welding accessories.
-For welding differenr types of material such as steel,stainless steel.
-Steel and aluminum is available on request.
| Item# | 353187 | 353188 | 353189 |
| Gas/No Gas | Gas/No Gas | Gas/No Gas | Gas/No Gas |
| Power voltage | 220-240V | 220-240V | 220-240V |
| Frequency | 50/60HZ | 50/60HZ | 50/60HZ |
| Max absorbed power | 3.7KVA | 5.2KVA | 6KVA |
| Absorbed power 60% | 1.4KVA | 2.3KVA | 2.5KVA |
| Fuse | 16A | 16A | 16A |
| Power factor | 0.9 | 0.9 | 0.9 |
| Max no-load voltage in DC | 34.2V | 35.8V | 37V |
| Current range output DC | 60-140A | 60-160A | 60-180A |
| Max current output DC | 115@15% | 140@15% | 140@20% |
| Adjustment positions | 4 | 4 | 4 |
| Steel welding wire diameter | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 |
| Flux welding wire diameter | 0.9 | 0.9 | 0.9 |
| Insulation class | H | H | H |
| Weight | 35kg | 37kg | 38kg |
| Size | 595x340x410mm | 595x340x410mm | 595x340x410mm |
Packing&Shipping
According to the customer's need,we ship goods by air,sea and express.
Packiing:Standard Carton.
Delivery Detail:30-35 days after received the 30 percent deposit.
