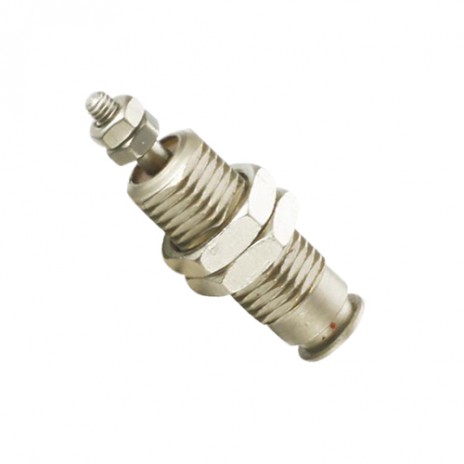

CJPB Needle Cylinder Double action or Single action Type :
| SKU | 357092 | 357093 | 357094 | |
| Bore | 6 | 10 | 15 | |
| Working Medium | Air | |||
| Motion Pattern | Double Action/Single Action(SDrawing-in Type) | |||
| Ensured Pressure Resistance | 10.5kgf/cm2(1.05Mpa) | |||
| Max.Pressure | 7kgf/cm2(0.7Mpa) | |||
| Min.Pressure | 2kgf/cm2(0.2Mpa) | 1.5kgf/cm2(0.15Mpa) | ||
| Operating Temperature Range | 5-60℃ | |||
| Buffering | No | |||
| Port Size | M5×0.8(Panel mount Type) | |||
Feature:
1.It has small shape.
2.The air cushion control is easier.
3.It is easy to adjust position.
4.High operability of magnetic switch.
