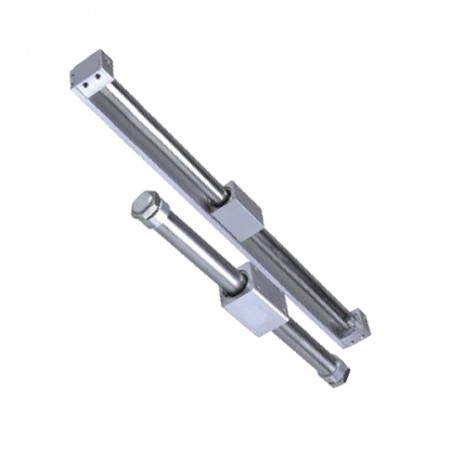

CY1 magnetic pneumatic cylinder Double Action Type :
| SKU | 357181 | 357182 | 357183 | 357184 | 357185 | 357186 | 357187 | 357188 | 357189 | |
| Bore | 6 | 10 | 15 | 20 | 25 | 32 | 40 | 50 | 63 | |
| Operating Fluid | Air | |||||||||
| Motion Pattern | Double Action | |||||||||
| Max.Pressure | 0.7Mpa | |||||||||
| Min.Pressure | 0.18Mpa | |||||||||
| Environment and Fluid Temp | -10-60℃ | |||||||||
| Piston Speed | 50-400mm/s | |||||||||
| Buffer | Both Ends Buffer | |||||||||
| Margin of Stroke length Error | 0-250+1.0/0 251-1000+1.4/0 1001～+1.8/0 | |||||||||
| Oil Feed | Not Need | |||||||||
| Port Size | M5×0.8 | 1/8" | 1/4" | |||||||
Feature:
1.It applies to a variety of orientation systems.
2.It uses the special resin wear-resisting ring,so the minimum use pressure reduced by 30%.
3.It uses the special resin wear-resisting ring which improves the lubrication performance,
therefore the durability enhances.
4.Bearing capacity is improved.
