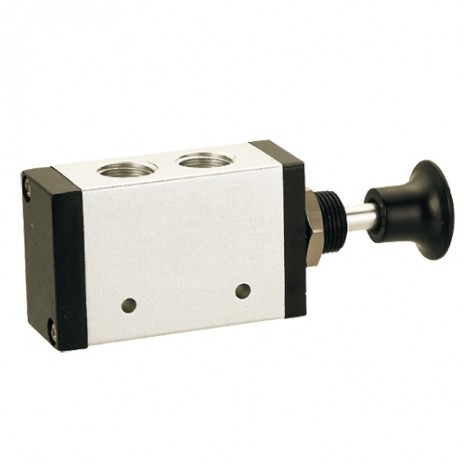

Hand-draw valve manual valve symbol 356097

Hand-draw valve manual valve symbol description:

Name: Hand-draw Valve
SKU: 356097-356104
Working Medium: Compressed Air
Working Temperature: -5~60℃
Acting Type: Direct Drive Type
Lubrication: Not Required

Hand-draw valve manual valve symbol features:

1. Sliding column structure, small structure so it is easy to install and use.
2. High precision stem, seal design to ensure air tightness.
3. The direction of the ball control and the same axis, easy to operate.
4. Exquisite manufacturing process, mechanical life of up to 200 million times.
5. The use of direct-acting diaphragm structure without pressure to start, expand its use of the field.

Hand-draw valve manual valve symbol advantages:

Adopting the gas as the power source, so the pneumatic control valve is relatively safe. And if it were leaking, the gas can be discharged directly. Compared with the hydraulic and electric medium, It do not have any pollution to the environment, It has a high security at the same time. A manual valve is generally the least expensive of any valve configuration and has low maintenance costs. In addition to quick, quarter turn on-off operation, manual valves are compact, require no lubrication, and give tight sealing with low torque. It has sliding column structure and small structure so it is easy to install and use. And the high precision stem, seal design will ensure air tightness.
