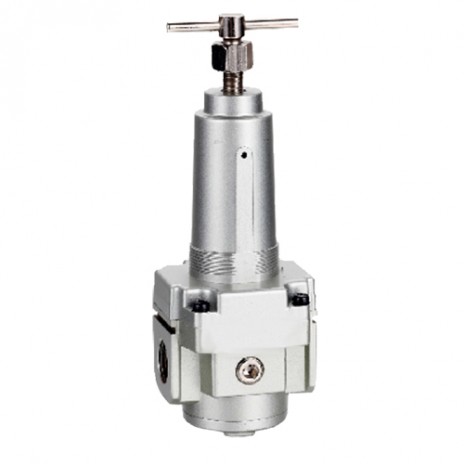

High quality air compressor air regulator descriptions:
Name: High quality air compressor air regulator
SKU: 355001-355011
Ensured Pressure Resistance: 2.0MPa
Hightest Working Pressure: 1.7MPa
Pressure Regulating Range: 0.05~1.7Mpa
Ambient and Fluid Temperature: 5~60℃
Valve Type: Piston Type
| Specifications | ||||
| Model | Rated Flow(L/Min) | Port Size(G) | Pressure Gauge Size(G) | Weight(kg) |
| 355001 | 550 | 1/8'' | 1/8" | 0.3 |
| 355002 | 1/4'' | |||
| 355003 | 2000 | 1/4'' | 1/8'' | 0.4 |
| 355004 | 3/8'' | |||
| 355005 | 2500 | 1/4'' | 1/8'' | 0.5 |
| 355006 | 3/8'' | |||
| 355007 | 6000 | 3/8'' | 1/4'' | 1.2 |
| 355008 | 1/2'' | |||
| 355009 | 6000 | 3/4'' | 1/4'' | 1.25 |
| 355010 | 8000 | 3/4'' | 1/4'' | 1.8 |
| 355011 | 1'' | |||
High quality air compressor air regulator features:
1. Valve handle with a suitable angle for human, more convenient.
2. Choosing aluminum alloy for body material, more durable.
3. Air compressor regulator, Complete size specifications to meet different needs.
4. Fine screw holes can better regulate the valve pressure, so that the air pressure close to constant.
5. The surface is very smooth and well arranged, more comfortable to use.
High quality air compressor air regulator advantages:
As we all know, the structure of the air source processor is simple, lightweight and easy to install. Its working medium is air mainly, Compared with the hydraulic medium, It is not easy to burn, so it is safer to use. The greatest advantage that the regulator offers is the ease of use. Because a regulator operates when one capacitor each is simply attached to the input and output sides, in substance little design is needed. And the modern design techniques and High quality material processes have enabled our regulators to remain the best choice for a number of applications. The surface is very smooth and well arranged so it is more comfortable to use. What is more, Choosing aluminum alloy for body material, it appears more durable. Lastly, the complete size specifications will meet different needs.
