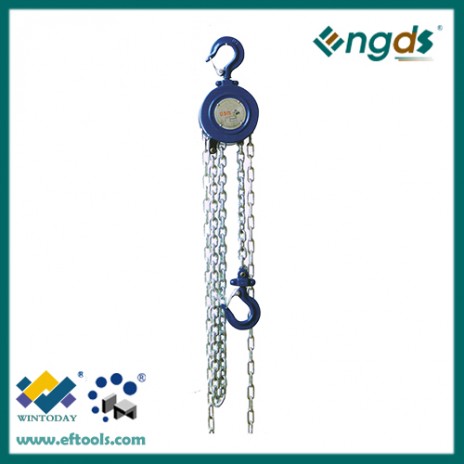

Description:
| Model | 201032 | 033 | 034 | 035 | 036 | 037 | 038 | 039 | 040 | 041 | |
| Capacity(T) | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 10 | 15 | 20 | 30 | |
| Standard Lift(m) | 2.5 | 2.5 | 2.5 | 2.5 | 3 | 3 | 3 | 3 | 3 | 3 | |
| Chainpull to Liftpull Load(N) | 265 | 365 | 400 | 375 | 415 | 435 | 450 | 475 | 480 | 490 | |
| No. of Chain | 1 | 1 | 1 | 2 | 2 | 2 | 4 | 6 | 8 | 12 | |
| Load Chain Diameter(mm) | 5*15 | 6*18 | 8*24 | 6*18 | 8*24 | 10*30 | 10*30 | 10*30 | 10*30 | 10*30 | |
| Extra Weight per meter of Extre Lift(Kg) | 8.6 | 12 | 17.5 | 20 | 35 | 40 | 75 | 117 | 164 | 400 | |
| Hmin(mm) | 315 | 355 | 435 | 470 | 555 | 720 | 820 | 920 | 1040 | 1390 | |
| Dimension(mm) | A | 122 | 146 | 175 | 192 | 205 | 282 | 358 | 415 | 280 | 705 |
| B | 110 | 130 | 150 | 170 | 185 | 170 | 168 | 208 | 200 | 485 | |
| C | 24 | 28 | 33 | 36 | 39 | 45 | 65 | 85 | 82 | 85 | |
| D | 35 | 40 | 45 | 50 | 55 | 65 | 85 | 110 | 106 | 106 | |
Advantages:
1.The small size and light weight makes the product easy to take.
2.The best choice for the place which lack of power.
3.It can equip with overload protector.
4.This product has CE and GS certifications. Also it has ISO9001 authentication.
5.Easier operation and smart appearance.
