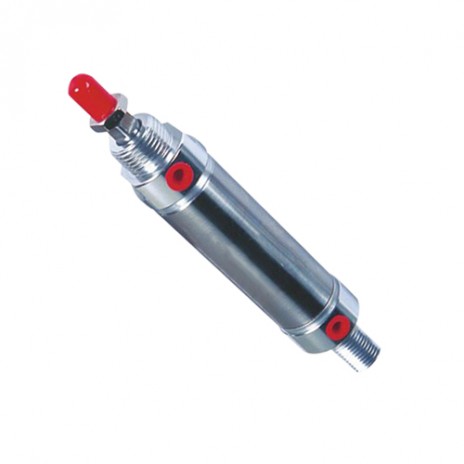

MA telescopic pneumatic cylinder :
| SKU | 357218 | 357219 | 357220 | 357221 | 357222 | |
| Bore | 16 | 20 | 25 | 32 | 40 | |
| Motion Pattern | Double Avtion or Single Action | |||||
| Working Medium | Air | |||||
| Fixed Type | Basic type/LB/FA/SDB | |||||
| Operating Voltage Range | 1-9kgf/cm2 | |||||
| Ensured Pressure resistance | 13.5kgf/cm2 | |||||
| Operating Temperature Range | 0-70℃ | |||||
| Operating Speed Range | 50-800mm/s | |||||
| Buffer Type | Buffer spacer | |||||
| Port Size | M5×0.8 | G1/8" | ||||
Feature:
1.The material of stainless steel has good corrosion resistance.
2.The strength of stainless steel cylinder body is high which make the overall
fastening reliabled.
3.The volume of the cylinder is very small.
4.Here are adjustable buffer type and end cap plus anti-collision cushion buffer
type can be selected which have good reduction of the cylinder reversing impact
and buffer smooth.
5.The connection between the end cover and the cylinder body is by using the
riveting roller package which has reliable fastening.
