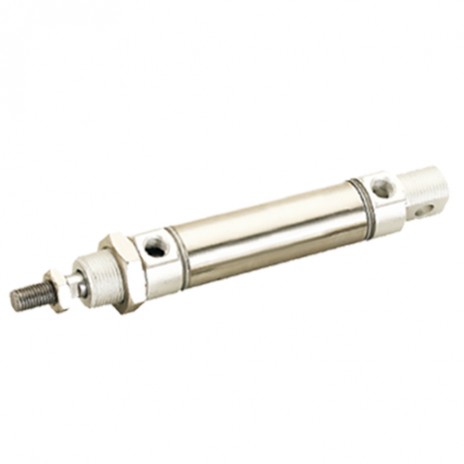

MA6432 single acting air cylinder :
| SKU | 357037 | 357038 | 357039 | 357040 | 357041 | 357042 | 357043 | |
| Bore | 100 | 125 | 160 | 200 | 250 | 320 | ||
| Working Medium | Air | |||||||
| Motion Pattern | Double Action or Single Action | |||||||
| Ensured Pressure Resistance | 15.3kgf/cm2(1.5Mpa) | |||||||
| Max.Pressure | 10.2kgf/cm2(1.0Mpa) | |||||||
| Min.Pressure | 0.5kgf/cm2(0.05Mpa)1kgf/cm2(0.1Mpa) | |||||||
| Environment And Fluid Temp | -20-70℃ | |||||||
| Piston Veocity | 50-750mm/s | |||||||
| Buffering | Adjustable Buffer | |||||||
| Kinetic Energy To Lerance(kgf/cm) | 0.2 | 0.3 | 0.4 | 0.9 | 2.7 | 4 | ||
| Pipe Size | M5×0.8 | G1/8" | ||||||
Feature:
1.There is no "leak" danger and the reliability is high.
2.There are several types of back cover can be chosen.
3.The material is stainless steel and can be very good rust.
4.It has small size for a wide variety of small installation space.
5.It can be buffered and good to reduce the reversing impact of the cylinder.
