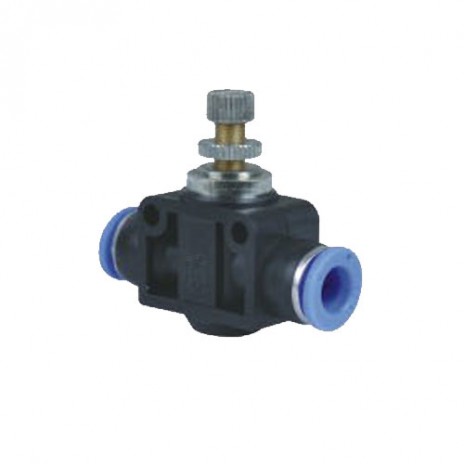

  • Quick Release Hose Connector TLSA,THVFF,THVFS,TPM 354091

Quick Release Hose Connector Zoom

Quick Release Hose Connector TLSA,THVFF,THVFS,TPM 354091

Quick Release Hose Connector TLSA,THVFF,THVFS,TPM 354091-354094:


Features:
a.Working Fluid:Air
b.Maximum operating pressure:1.32MPa(13.55kgf/cm²)
c.Maximum working pressure:0~0.9MPa(0~9.2kgf/cm²)
d.Low pressure working pressure:-99.99~0Kpa(-750~0mmHg)
e.Environment and Fluid Temperature:0~60℃
f.Use the hose:PU hose,nylon tube.

Artikelposition: 354094

about Engdas Tools

engdas company

Beschreibung

Details

Quick Release Hose Connector TLSA,THVFF,THVFS,TPM 354091-354094:

Inch Metric D1 D2 B F J  d
5/32-5/32 04-04 φ4 38 13 11.5 30 3
1/4-1/4 06-06 φ6 48.5 20 15 44 4.2
5/16-5/16 08-08 φ8 53.8 22 18 48 4.2
3/8-3/8 10-10 φ10 61.5 25.5 21 54 4
1/2-1/2 12-12 φ12 75 31.8 28.2 57 5
