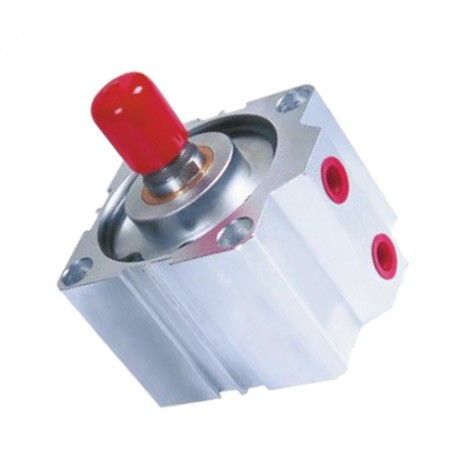

SDA magnetic cylinder Double Action or Single Action Type :
SKU | 357228 | 357229 | 357230 | 357231 | 357232 | 357233 | 357234 | 357235 | 357236 | 357237 | ||
Bore | 12 | 16 | 20 | 25 | 32 | 40 | 50 | 63 | 80 | 100 | ||
Motion Pattern | Double Action | |||||||||||
Single Action Extrusion type Single Action Drawing-in Type | - | |||||||||||
Working Medium | Filtered Air | |||||||||||
Operating Voltage Range |
Double Action | 1-9kgf/cm2 | ||||||||||
Single Action | 2-9kgf/cm2 | - | ||||||||||
Ensured Pressure Resistance | 10.5kgf/cm2 | |||||||||||
Operating Temperature Range | 0-70℃ | |||||||||||
Operating Speed Range |
Double Action | 30-500mm/s | 30-350mm/s | 30-250mm/s | ||||||||
Single Action | 100-500mm/s | - | ||||||||||
Port Size | M5×0.8 | G1/8" | G1/4" | G3/8" |
Feature:
1.Built-in balabced copper sleeve can prolong the service life of dust-proof seal.
2.The internal and external hardening treatment make it high-strength.
3.The internal and rear rubber cushion gasket can effectively reduce the impact of piston and cylinder.
4.The integration rod and the piston riveting can guarantee the concentricity of the maximum degree.
5.It has a composite bushing that effectively reduces wear and tear in the dust ring.
