Beschreibung
Details

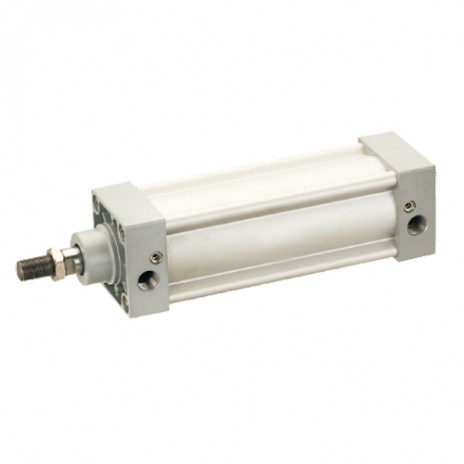

SI air piston cylinder Double Action Type :
| SKU | 357009 | 357010 | 357011 | 357012 | 357013 | 357014 | 357015 | 357016 | 357017 | 357018 | 357019 | |
| Bore | 32 | 40 | 50 | 63 | 80 | 100 | 125 | 160 | 200 | 250 | 320 | |
| Motion Pattern | Double Action | |||||||||||
| Working Medium | Air | |||||||||||
| Fixed Type | Nomal Type/FA/FB/CA/CB/SDB/LB | |||||||||||
| Working Pressure Range | 0.1-0.9Mpa | |||||||||||
| Ensured Pressure Resistance | 1.35Mpa | |||||||||||
| Operating Temperature Range | -5-70℃ | |||||||||||
| Operating Speed Range | 50-800mm/s | |||||||||||
| Buffer type | Adjustable Buffer | |||||||||||
| Buffer Stroke | 24 | 32 | ||||||||||
| Port Size | G1/8" | G1/4" | G3/8" | G1/2" | G3/4" | G1" | ||||||
Feature:
1.The ability to extend a range of faeture by displacing related parts makes practical easier.
2.There is no "leak" danger and high reliability.
3.There is no need for additional pressure devices, so the noise is very small.
4.It can move quickly and react quickly.
5.It has strong adaptability and can adapt to a variety of harsh environments.
