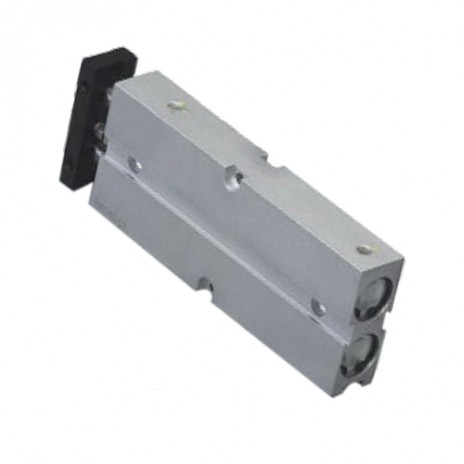

TN double rod cylinder pneumatic Double Action Type :
| SKU | 357170 | 357171 | 357172 | 357173 | 357174 | |
| Bore | 10 | 16 | 20 | 25 | 32 | |
| Motion Pattern | Double Action | |||||
| Working Medium | Air | |||||
| Operating pressure | 0.1-0.9Mpa(1-9kgf/cm2) | |||||
| Ensured Presure Resistance | 1.35Mpa(13.5kgf/cm2) | |||||
| Operating temperature | -5-70℃ | |||||
| Buffer type | Stationary buffering | |||||
| Port Size | M5×0.8 | G1/8" | ||||
Feature:
1.Front-end anti-collision pad can adjust the stroke and ease the impact.
2.Mounting holes are installed on three sides of the fixed plate for easy loading.
3.It can withstand a certain lateral load.
4.It has certain bending resistance and torsion resistance.
5.Fixed form of embedded body installation can save installation space.
