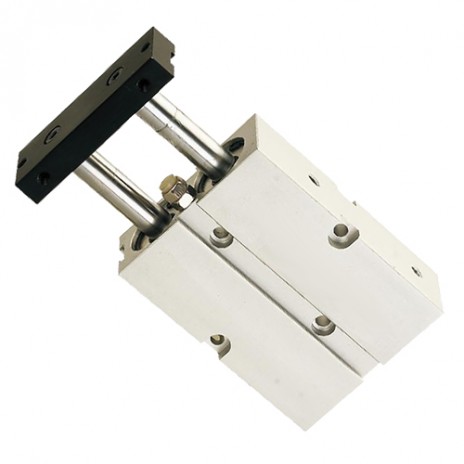

TN high pressure air cylinder Double Action Type :
| SKU | 357095 | 357096 | 357097 | 357098 | 357099 | |
| Bore | 10 | 16 | 20 | 25 | 32 | |
| Motion Pattern | Double Action | |||||
| Working Medium | Air | |||||
| Operating Voltage Range | 1-9kgf/cm2 | |||||
| Ensured Pressure Resistance | 10.5kgf/cm2 | |||||
| Operating Temperature Range | -5-70℃ | |||||
| Operating Speed Range | 100-500mm/s | |||||
| Adjustable Stroke | -10-0mm | |||||
| Cushion Type | Fixed Type Buffer | |||||
| Non Rotating Precision | 0.4℃ | 0.3℃ | ||||
| Pipe Size | M5×0.8 | G1/8" | ||||
Feature:
1.It use a double layer of thickened plating which has high hardness.
2.Six-axis precision machining does not leak.
3.Compound PTFE wear-resisting ring can reduce the abrasion of piston seal ring.
4.Compound PTFE wear-resisting ring can improve the guidance of cylinder.
5.Rubber cushion cushion slows cylinder body impact and prolong cylinder life.
6.It has high piston concentricity and better seal.
