Description
Details
Air filter combination pneumatic components manufacturers descriptions:

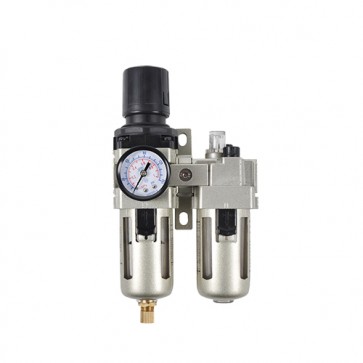

Name: Air filter combination pneumatic components manufacturers
SKU: 355113-355122
Ensured Pressure Resistance: 1.5MPa
Hightest Working Pressure: 1.0MPa
Ambient and Fluid Temperature: 5~60℃
Filter Precision: 25µm/5μm/50μm
Body Material: Prolycarbanate
Accessory: Bracket
Valve Type:With Overflow
Recommended Oil Use:Turbine NO.1 Oil ISOVG32
| Specifications | ||||||
| Model | Rated Flow(L/Min) | Port Size(G) | Pressure Gauge Size(G) | Weight(kg) | Protective Cover | Pressure Regulating Range |
| 355113 | 90 | M5 | 1/16'' | 0.25 | Not Available | 0.05-0.7MPa |
| 355114 | 500 | 1/8'' | 1/8'' | 0.66 | 0.05-0.85MPa | |
| 355115 | 1/4'' | |||||
| 355116 | 1700 | 1/4'' | 1/8'' | 1.0 | Available | |
| 355117 | 3/8'' | |||||
| 355118 | 3000 | 3/8'' | 1/4'' | 1.91 | ||
| 355119 | 1/2'' | |||||
| 355120 | 3000 | 3/4'' | 1/4'' | 2.10 | ||
| 355121 | 4000 | 3/4'' | 1/4'' | 3.20 | ||
| 355122 | 1'' | |||||
Air filter combination F.R.L oil mist system features:
1. The oil mist filter in the compressed air can be filtered using an oil mist filter.
2. The interior is designed to make the product more durable and more comfortable.
3. Containing resistance to the mist, the oil in the oil cup fully atomized into particles, so that the piston fully lubricated, thereby extending the product life and saving fuel consumption.
4. Polymer material and excellent sealing, high-strength heat so it is not easy to aging.
5. Using modular connection, it can be used in combination or alone, high efficiency.
6. Complete size specifications to meet different needs.
Air filter combination F.R.L oil mist system advantages:
As we all know, the structure of the air source processor is simple, lightweight and easy to install. Its working medium is air mainly, Compared with the hydraulic medium, It is not easy to burn, so it is safer to use.Our filter combination are the perfect choice for the most demanding applications. By combining these three items, you will enjoy the excellent regulator flow characteristics with minimal pressure drop and high quality lubrication to your vital pneumatic components.The oil mist filter in the compressed air can be filtered using an oil mist filter. And the interior is designed to make the product more durable and more comfortable. Besides, it is containing resistance to the mist, the oil in the oil cup fully atomized into particles, so that the piston fully lubricated, thereby extending the product life and saving fuel consumption.
