Air filter regulator lubricator for compressed air 355030

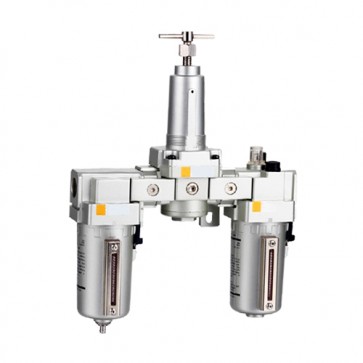

Name:  Air filter regulator lubricator for compressed air
SKU: 355030-355040
Ensured Pressure Resistance: 2.0MPa
Hightest Working Pressure: 1.7MPa
Ambient and Fluid Temperature: 5~60℃
Filter Precision: 25µm/5μm/50μm

SKU: 355030

about Engdas Tools

engdas company

Description

Details

Air filter regulator lubricator for compressed air descriptions:

Name:  Air filter regulator lubricator for compressed air
SKU: 355030-355040
Ensured Pressure Resistance: 2.0MPa
Hightest Working Pressure: 1.7MPa
Ambient and Fluid Temperature: 5~60℃
Filter Precision: 25µm/5μm/50μm
Body Material: Aluminum die casting
Pressure Regulating Range: 0.05~1.7Mpa
Valve Type: Piston Type
Accessories: 2 Brackets
Recommend Oil Use: Turbine No.1 Oil ISOVG32

Specifications
 Model Rated Flow(L/Min)  Port Size(G)  Pressure Gauge Size(G)  Weight(kg)
355030 500 1/8''   1/8"  0.74
 355031  1/4''
355032 1500 1/4''  1/8''  1.04
355033  3/8''
355034  2000 1/4''  1/8''  1.18
355035  3/8''
355036  4000 3/8''  1/4''  2.14
355037  1/2''
355038  4500 3/4'' 1/4'' 2.47
355039 5000 3/4'' 1/4'' 3.82
355040 1''

filter regulator lubricator for compressed air

filter regulator lubricator for compressed air

Air filter regulator lubricator for compressed air features:

1. Exhaust treatment is simple, so it does not pollute the environment and low cost.
2. The use of air compression can store energy so as to achieve centralized gas supply.
3. Exquisite appearance, surface oxidation spray treatment, more durable and corrosion resistant.
4. Choosing aluminum alloy for body material, more durable.
5. High-quality filter so its filter effect is better and it also has a longer lifetime.
6. The interior is designed to make the product more durable and more comfortable.

Air filter regulator lubricator for compressed air advantages:

As we all know, the structure of the air source processor is simple, lightweight and easy to install. Its working medium is air mainly, Compared with the hydraulic medium, It is not easy to burn, so it is safer to use.Our filter combination are the perfect choice for the most demanding applications. By combining these three items, you will enjoy the excellent regulator flow characteristics with minimal pressure drop and high quality lubrication to your vital pneumatic components. And the exhaust treatment is simple, so it does not pollute the environment. Besides, the use of air compression can store energy so as to achieve centralized gas supply.

filter regulator lubricator for compressed air
