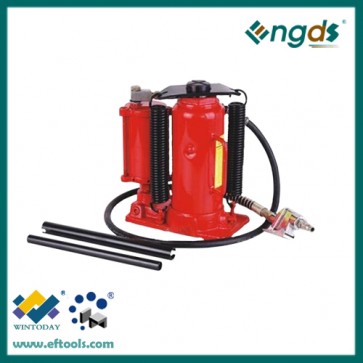

The air hydraulic jack uses compressed air as its air source,air pump the high pressure oil into cylinder,lifts the piston rod and adds carrying strength.There are five types fo the item,352016,352017,352018,352019,352020.
Air Hydraulic Jack Type and 12/20/22/32/50T Capacity (Load) Hydraulic Jack
| Item# |
Capacity |
Min.H. |
Max.H. |
Adjust.H. |
Lifting.H. |
Package Size |
G.W. |
N.W. |
Q'TY/20FCL |
| 352016 |
12T |
250mm |
495mm |
80mm |
165mm |
240x180x280mm |
11kg |
10kg |
1400pcs |
| 352017 |
20T |
260mm |
510mm |
80mm |
170mm |
260x200x280mm |
18kg |
17kg |
1000pcs |
| 352018 |
32T |
250mm |
405mm |
/ |
150mm |
290x220x270mm |
22kg |
21kg |
730pcs |
| 352019 |
50T |
270+25mm |
430+25mm |
/ |
160mm |
370x300x290mm |
35kg |
32kg |
700pcs |
| 352020 |
22T |
225+20mm |
435+100mm |
80mm |
130mm |
640x360x300mm |
38kg |
36kg |
400pcs |
a.Uses compressed air as its air source,air pump the high pressure oil into cylinder,lifts the piston rod and adds carrying strength.
b.Different adapters widen the adjusted range.
c.Safety overload system prevents jack from being used beyond its rated capacity.
According to the customer's need,we ship goods by air,sea and express.We pack the item in wooden box.Also,we delivery the goods witnin 30-35 days after received the 30 percent deposit.
