Automatic Single PE Coated Paper Cup Machine 710004

It is an ideal equipment of making hot drink disposable paper cups(for tea, coffee, milk and water) and ice cream paper cups etc.

SKU: 710004

about Engdas Tools

engdas company

Description

Details

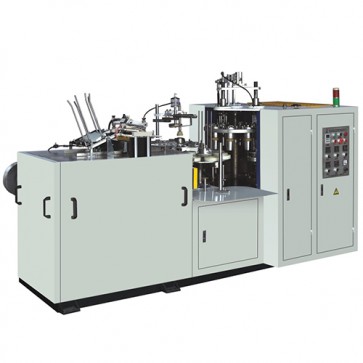

Automatic Single PE Coated Paper Cup Machine

SKU 710004
Paper cup size 2-12oz(mold exchangeable
Paper Material 160-230g/m² One-side PE(polyethylene) film coated/laminated paper
Rated productivity 40-50pcs/min
Power source 220/380v 50hz
Total power 4.8kw
Weight 1500kg
Packing dimensions 2750x1320x1750mm

Single PE coated cup machine is an automatic machine with multi working station. It runs a procedure of single side PE coated paper cup fan feeding. Then the cup side is welded by heater. Next, the machine starts to silicone oil lubricate(for top curling), bottom punch and bottom preheat. Also, it need bottom folding, bottom knurling, top curling and cup discharging. The single PE coated paper cup machine has the function of photocell detection, failure alarm and counting. It is an ideal equipment of making hot drink disposable cups,like tea, coffee, milk and ice cream.
Single PE coated paper cup machine is easy to operate. Its low consumption and high efficiency also influence the cost. The machine works stably and low noise.

Single PE Coated Paper Cup Machine Advantages
1. We have three cam to control the cup clamp system. It is very import part in the machine. It will enable the machine run more fluently.
2. The knurling part is more special than others. We have on shaft inside. It is 4 times power strength as other's machine. It makes the low leaking ratio and high quality as other's cups. The speed is very fast when the single PE coated paper cup machine working.
3. The cover of single PE coated paper cup machine can be all take off in 2 minutes. It is much easy for repair and maintenance.
4. Machine inner has structure design, the big spring, we install inside. It will accept the force evenly. Also it will have a better performance. So that the machine will not pause or stop while inching. It is good for adjusting and running.
5. We have 3 pillar shaft for each side, which is more durable.
6. All the cams and gears are hardened.It will have a super performance when the machine working in a long time.
7. Unique design with net guard cover is better for heat dissipation. It can ensure the single PE coated paper cup machine has a longer life span.
