Best Quality and Professional Check Valve 356245

Working Pressure Range: 0.5~9.5Kgf/cm2
Ensured Pressure Resistance: 15.0Kgf/cm2
Operating Temperature Range: -5~60℃

SKU: 356245

about Engdas Tools

engdas company

Description

Details

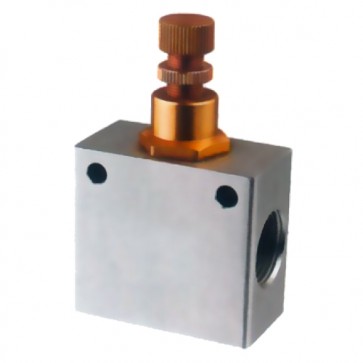

Best Quality and Professional Check Valve Description:

Name: Check Valve
SKU: 356245-356248
Working Medium: Air
Working Pressure Range: 0.5~9.5Kgf/cm2
Ensured Pressure Resistance: 15.0Kgf/cm2
Operating Temperature Range: -5~60℃
Body Meterial: Aluminum Alloy

check valve

check valve

check valve

check valve

Best Quality and Professional Check Valve Features:

1. Flow control single flow adjustment range is larger, smooth flow pressure changes.
2. The adjustment of the torque is small and the action is very sensitive.
3. The check valve is used where the reverse flow is not allowed.
4. Stainless steel spring, low return water pressure.

Best Quality and Professional Check Valve Advantages:

Adopting the gas as the power source, so the pneumatic control valve is relatively safe. And if it were leaking, the gas can be discharged directly. Compared with the hydraulic and electric medium, It do not have any pollution to the environment, It has a high security at the same time. A check valve allows flow in one direction and automatically prevents back flow (reverse flow) when fluid in the line reverses direction. They are self-actuated and require no external means to actuate the valve either to open or close. They are fast acting. And the flow control single flow adjustment range is larger and the flow pressure changes is smooth. Besides, The adjustment of the torque is small and the action is very sensitive.

check valve
