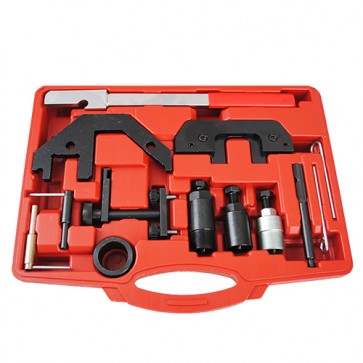

BMW M41 M51 M47 M57 engine timing tool set description:
Name: BMW M41 M51 M47 M57 engine timing tool set
SKU: 138116
Engine Type:
1.7 L M41 Diesel (94-00), 2.0 L M47 Diesel (98-06),
2.0 L N47 Diesel (06-Present), 2.4 L M21 Diesel (83-93),
2.5 L M51 Diesel (91-98), 2.5/3.0 L M57 Diesel (91-Present)
Content:
Camshaft locking tools, Camshaft lock holder,
4mm Timing belt tensioning tool, Chain-tensioner tool,
Flywheel locking tool, Injection pump puller
Application:
BMW-120d (E87), 318d (E87), 318d (E90), 318d (E91), 318d LCI (E46), 318td LCI (E46), 318tds (E36),
320d (E46), 320Cd LCI (E46), 320d LCI (E46), 320td (E46), 320d (E90), 320d (E91), 325d (E90),
325d M LCI (E90), 325d A LCI (E90), 325d (E91), 325d M LCI (E91), 325d A LCI (E91), 325td (E36),
325tds (E36), 330d (E46), 330d LCI (E46), 330xd (E46), 330xd LCI (E46), 330d (E90), 330xd (E90),
330d (E91), 330xd (E91), 330d (E92), 330xd (E92), 330d (E93), 330d M LCI (E90), 330d A LCI (E90),
330d M LCI (E91), 330d A LCI (E91), 330Cd LCI (E46), 330xd LCI (E46), 335d (E90), 335d A LCI (E90),
335d (E91), 335d A LCI (E91), 335d (E92), 335d A (E92), 520d LCI (E39), 520d (E60), 520d M LCI (E60),
520d (E61), 520d M LCI (E61), 525d (E60), 525d (E60), 525d LCI (E39), 525d M LCI (E60), 525xd M LCI (E60),
525xd M LCI (E61), 525d M (F10), 525d A (F10), 525d xDrive M (F10), 525d xDrive A (F10), 525td LCI (E34),
525td (E39), 525tds (E34), 525tds LCI (E34), 525tds (E39), 530d (E39), 530d LCI (E39), 530d (E60),
530xd (E60), 530xd (E61), 530d (E61), 530d M LCI (E60), 530xd M LCI (E60), 530d M LCI (E61),
530xd M LCI (E61), 530d M (F10), 530d A (F10), 530d xDrive M (F10), 530d xDrive A (F10), 535d (E60),
535d (E61), 535d M LCI (E60), 535d A (F10), 635d A LCI (E63), 635d A LCI (E64), 725tds (E38),
730d A LCI (E38), 730d LCI (E38), 730d A LCI (E65), 730Ld A LCI (E66), 730d A (F01), 730Ld A (F02),
730d A (E65), X3 2.0d (E83), X3 2.0d M LCI (E83), X3 3.0d (E83), X3 3.0d M (E83), X3 3.0d A (E83),
X3 3.0d M LCI (E83), X3 3.0d A LCI (E83), X3 3.0sd A LCI (E83), X5 3.0d (E53), X5 3.0d A (E70),
X5 3.0sd A (E70), X5 3.0d LCI (E53), X6 xDrive 3.0d (E71), X6 xDrive 3.5d (E71), Rover 75, Land Rover Freelander
Engine Code:
M47 D20, M47 D20 02, M47TU D20, M47TU2 D20, M57 D25, M57 D29, M57 D30 02, M57 D30 T2, M57 U2, M57TU D25, M57TU D30, M47R, M47
BMW M41 M51 M47 M57 engine timing tool set features:
1. It is a complete tool set for timing. It contains camshaft locking tools, camshaft lock holder, and timing belt tensioning tools, chain tensioner tool, flywheel locking tool and injection pump puller.
2. The tools can use for assembling and dismantling the camshaft and hydraulic chain tensioner.
3. As a multi-functional and professional tool set, it can be used for many engines, such as M47 D20, M47 D20 02, M47TU D20, M47TU2 D20, M57 D25, M57 D29, M57 D30 02, M57 D30 T2, M57 U2, M57TU D25, M57TU D30, M47R, M47, etc.
4. The tool set is durable for a long time using without damage or break.
