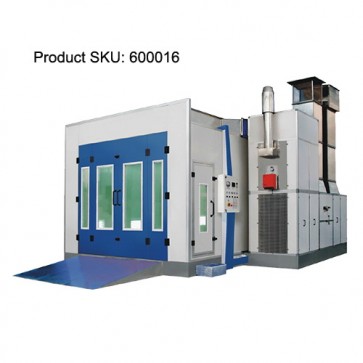

CCS and CE certification automotive spray paint booth 600016
| Automotive spray paint booth Room Structure | |
| External Room Dimension | 700*540*340cm |
| Internal Room Diemension | 690*390*265cm |
| Roof Meteral | EPS Material |
| Working Door Size | 70*190cm |
| Door Size | 300*270cm |
| Base Configuration | 1. All of grille bar |
| 2. Height: 280mm | |
| 3. Galvanized steel material. | |
| 4. 3 ramps: 90*300cm | |
| Wall Configuration | 1. 50mm thermokeeping EPS board in the wall. |
| 2. Galvanized metal top board. | |
| Automotive spray paint booth Filtering System | |
| Ceiling Filter | Pre-filter+Medium filter |
| Automotive spray paint booth Heating System | |
| Thermal exchanger | 1. Stainless material heating exchanger |
| 2. 26ka/h | |
| Temperture | ≤65-75°C |
| Automotive spray paint booth Lighting System | |
| Lamp | 1. 40pcs 30W Ceiling Side light |
| 2. 16pcs 20W lower lamp | |
| Automotive spray paint booth Electrical Control System | |
| Power | 18KW |
| Electrical System | 1. Lighting switch |
| 2. Spraying switch | |
| 3. Temperture set switch | |
| 4. Time setting switch | |
| 5. Failure indcator | |
| Automotive spray paint booth Air Supply System | |
| Blower | 1. 1 set of 7.5KW Centrifugal air blower |
| 2. Air volume 25000 m³/h | |
| 3. Cross draft | |
| Automotive spray paint booth Air Exhausting System | |
| Air exhauster | 1. 1 sets of 7.5KW Centrifugal air blower |
| 2. Glass fiber filter | |
| 3. Active carbon adsorption | |
| 3. Air volume: 25000 m³/h | |
