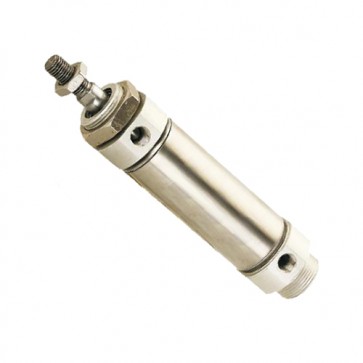

CDM2B magnetic piston air cylinder Double Action type 357056

SKU: 357056

Request a Quote

Blank Form (#3)

CDM2B magnetic piston air cylinder Double Action Type :

SKU          357056 357057 357058 357059
Bore 20 25 32 40
Working Medium Air
Motion Pattern Double Action
Ensured Pressure Resistance 15.3kgf/cm2(1.5Mpa)
Max.Pressure 10.2kgf/cm2(1.0Mpa)
Min.Pressure 0.5kgf/cm2(0.05Mpa)
Operating Temperature Range -10-70℃
Operating Speed Range 50-750mm/s
Buffering Rubber Buffer(Standard),Air Buffer(Optional)
Port Size G1/8″ G1/4″

Feature:
1.The material is stainless steel so the cylinder strength is high.
2.It has a variety of models to choose.
3.The system structure is very simple to install.
4.The front and rear cover and the cylinder body adopt the riveting roll
package structure, so the connection is reliable.
5.It occupies a small size.
