Description
Details

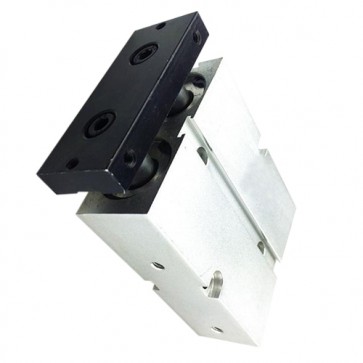

CDU air cylinder seal type Double Action Type :
SKU | 357164 | 3571465 | 357166 | 357167 | 357168 | 357169 | |
Bore | 6 | 10 | 16 | 20 | 25 | 32 | |
Motion Pattern | Double Action | ||||||
Working Medium | Air | ||||||
Operating Pressure | 0.1-0.9Mpa(1-9kgf/cm2) | ||||||
Ensured Pressure Resistance | 1.05Mpa(10kgf/cm2) | ||||||
Operating temperature | -5-70℃ | ||||||
Buffer Type | Stationary buffering | ||||||
Port Size | M5 | 1/8" |
Feature:
1.Cushion pads in front and back can reduce impact.
2.There is no "leak" danger because of the tolerance betwen the sealing piece
and the innner hole is small.
3.Integrated pistons and rods which has multiple seals.
4.Front dust-proff parts which is wear-resistant.
