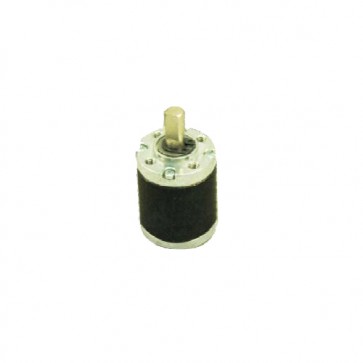

Housing material:Metal.
Backlash,at no-load:≤1.2°.
Bearing at output:Sleeve bearings.
Radial play of shaft:≤0.05mm.
Thrust play shaft:≤0.2mm.
Attention:The broken torque of the gearbox is 30kgf.com.When the motors using at low speed,high gear ratio,please choose low power motors,and no protection measurements.
| Pinion Specifications | ||
| Module | 0.4 | 0.4 |
| No. of teeth | 12 | 15 |
| Pressure angle | 20° | |
| Hole dimameter | φ1.98, φ2.28 | |
| Reduction ratio | 4.25, 15.3, 18, 55, 65, 76.8 198, 234, 276, 326, 713 842, 994, 1174, 1386 |
3.6, 13, 36 46.7, 114, 130 168, 467, 604.6 |
| Operating temperature range | -10℃~+60℃ | |
| Operating relative humidity | 20%~85%RH | |
| Gearboxes Specifications | |||||
| Reduction ratio | Rated tolerance torque | Max breaking torque | Efficiency | No. of stages | Gearbox Length "L"mm |
| 3.6, 4.25 | 3.0kgf.cm | 9.0kgf.cm | 90% | 1 | 18.3 |
| 13, 15.3, 18 | 5.0kgf.cm | 15.0kgf.cm | 81% | 2 | 25.0 |
| 36, 46.7, 55, 65, 76.8 | 10.0kgf.cm | 30kgf.cm | 73% | 3 | 30.8 |
| 114, 130, 168, 198, 234, 276, 326 | 10.0kgf.cm | 30kgf.cm | 65% | 7 | 36.6 |
| 467, 604, 713, 842, 994, 1174, 1386 | 10.0kgf.cm | 30kgf.cm | 59% | 5 | 42.4 |
