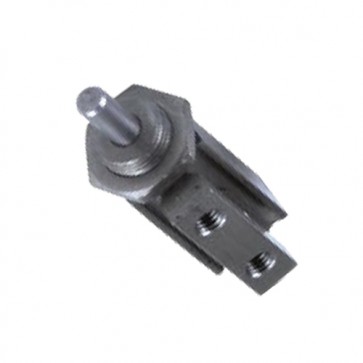

CJP Needle Type Cylinder spring return air cylinder 357161

Feature:
1.High strength
2.Small size
3.Large output
4.Various sizes

SKU: 357161

about Engdas Tools

engdas company

Description

Details

CJP Needle Type Cylinder spring return air cylinder :

SKU         357161 357162 357163
Bore   6 10 15
Fluid  Air
Motion Pattern  Single Action-Spring pressure back
Ensured Pressure Resistance   1.05Mpa(10.5kgf/cm2)
Max.Pressure   0.7Mpa(7.0kgf/cm2)
Min.Pressure   0.15Mpa(1.5kgf/cm2)/0.2Mpa(2kgf/cm2)
Environment and Fluid Temp    5-60℃
Buffer No Buffering
lubrication  NOT Need
Port Size   M5×0.8


Feature:
1.It is small in size and suitable for tight confined spaces.
2.It has two functions which has large output force and proportional to the
Square of the cylinder diameter.
3.There are various sizes can be chosen.
4.Hard surface treatment which has high strength.
