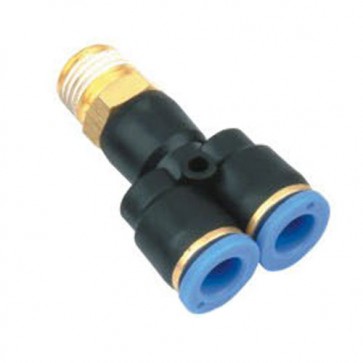

Competitive Price TPX TPKB TPLL TPH Quick Connect Coupling 354087-354090:
| Inch | Metric | D | R | A | B | H | J | φ d |
| 5/32-M5 | 04-M5 | φ4 | M5 | 3.5 | 39 | 10 | 12 | φ3.2 |
| 5/32-01 | 04-01 | φ4 | 1/8 | 7 | 41.5 | 10 | 12 | φ3.2 |
| 5/32-02 | 04-02 | φ4 | 1/4 | 9 | 43.5 | 14 | 12 | φ3.2 |
| 5/32-03 | 04-03 | φ 4 | 3/8 | 9 | 43.5 | 17 | 12 | φ 3.2 |
| 1/4-M5 | 06-M5 | φ6 | M5 | 3.5 | 41 | 10 | 12.5 | φ 4 |
| 1/4-01 | 06-01 | φ6 | 1/8 | 7 | 43 | 12 | 12.5 | φ4 |
| 1/4-02 | 06-02 | φ6 | 1/4 | 9 | 45 | 14 | 12.5 | φ4 |
| 1/4-03 | 06-03 | φ6 | 3/8 | 9 | 45 | 17 | 12.5 | φ4 |
| 1/4-04 | 06-04 | φ6 | 1/2 | 11 | 48 | 21 | 12.5 | φ4 |
| 5/16-01 | 08-01 | φ8 | 1/8 | 7 | 46 | 14 | 14.8 | φ4 |
| 5/16-02 | 08-02 | φ8 | 1/4 | 9 | 48 | 14 | 14.8 | φ4 |
| 5/16-03 | 08-03 | φ8 | 3/8 | 9 | 48 | 17 | 14.8 | φ4 |
| 5/16-04 | 08-04 | φ8 | 1/2 | 11 | 51 | 21 | 14.8 | φ4 |
| 3/8-01 | 10-01 | φ10 | 1/8 | 7 | 54.5 | 17 | 18 | φ4.5 |
| 3/8-02 | 10-02 | φ10 | 1/4 | 9 | 56.5 | 17 | 18 | φ4.5 |
| 3/8-03 | 10-03 | φ10 | 3/8 | 9 | 56.5 | 17 | 18 | φ4.5 |
| 3/8-04 | 10-04 | φ10 | 1/2 | 11 | 59.5 | 21 | 18 | φ4.5 |
| 1/2-01 | 12-01 | φ12 | 1/8 | 7 | 56.5 | 21 | 22 | φ4 |
| 1/2-02 | 12-02 | φ12 | 1/4 | 9 | 58.5 | 21 | 22 | φ4 |
| 1/2-03 | 12-03 | φ12 | 3/8 | 9 | 58.5 | 21 | 22 | φ4 |
| 1/2-04 | 12-04 | φ12 | 1/2 | 11 | 60.5 | 21 | 22 | φ4 |
| / | 14-02 | φ14 | 1/4 | 9 | 72 | 24 | 27 | φ5 |
| / | 14-03 | φ14 | 3/8 | 9 | 72 | 24 | 27 | φ5 |
| / | 14-04 | φ14 | 1/2 | 11 | 74 | 24 | 27 | φ5 |
| / | 14-06 | φ14 | 3/4 | 15 | 80 | 24 | 27 | φ5 |
| / | 16-02 | φ16 | 1/4 | 9 | 72 | 24 | 27 | φ5 |
| / | 16-03 | φ16 | 3/8 | 9 | 72 | 24 | 27 | φ5 |
| / | 16-04 | φ16 | 1/2 | 11 | 74 | 24 | 27 | φ5 |
| / | 16-06 | φ16 | 3/4 | 15 | 80 | 27 | 27 | φ 5 |
