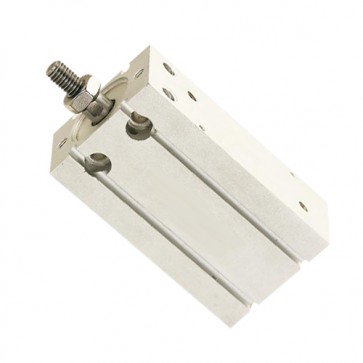

CU air pneumatic cylinder Double Action or Single Action Type 357106

Feature:
1.Standard blowhole
2.Small size
3.High temperature resistance
4.High-precision piston rods

SKU: 357106

about Engdas Tools

engdas company

Description

Details

CU air pneumatic cylinder Double Action or Single Action Type:

SKU         357106 357107 357108 357109 357110 357111
Bore 10  16  20  25  32
Working Medium Air
Motion Pattern       Double Action/Single Action Extrusion Type/Single Action Drawing-In Type
Ensured Pressure Resistance 1.0Mpa(10.5kgf/cm2)
Max.Pressure   0.7Mpa(7.1kgf/cm2)
Ambient and Medium Temperature  5-60℃
Cushion   Both Ends Buffer
Precision of piston rod with Non-rotating ±0.8°    ±0.5°
Port Size M5×0.8      G1/8"


Feature:
1.The material has high temprature resistance.
2.High-precision piston rods require no additional lubricating oil.
3.It has small size and can be multiple and fixed together which effectively save installation space.
4.The import is sealed and the sliding movement is fluent.
5.It has standard blowhole which has dustproof design.
