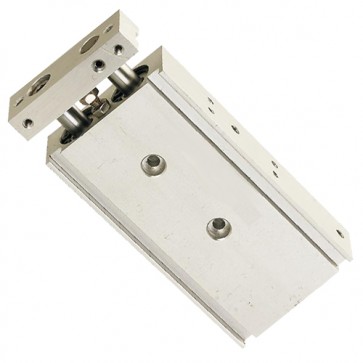

CXS telescoping pneumatic cylinder 357100

1.Certain bending resistance
2.Certain torsion resistance
3.Buried-type installation of magnetic switch
4.Space saving

SKU: 357100

about Engdas Tools

engdas company



CXS telescoping pneumatic cylinder :

SKU         357100 357101 357102 357103 357104 357105
Bore 6 10 16 20 25 32
Working Medium   Air
Motion Pattern   Double Action
Ensured Pressure Resistance  1.05Mpa(10.7kgf/cm2)
Max.Pressure  0.7Mpa(7.1kgf/cm2)
Min.Pressure    0.15Mpa(1.5kgf/cm2)   0.1Mpa(1.0kgf/cm2)      0.05Mpa(0.51kgf/cm2)
Operating temperature Range   5-60℃
Cushion    Both Ends Buffer
Structare   Double Power
Stroke Acjustable Range      (Returm Stroke)0-5mm
Bearing   Slide Bearing/Ball Guide Bearing
Precision of Piston
Rod Non-Rotating
Slide Bearing ±0.1 ±0.15  ±0.13  ±0.11 ±0.1  ±0.08
Ball Guide Bearing  ±0.1 ±0.1  ±0.07  ±0.06 ±0.05  ±0.04
Port size M5×0.8      G1/8"

1.Double cylinder can increase thrust by 1time times.
2.It has a buried-type installation of magnetic switch which can saving space and affect better.
3.It can withstand a certain lateral load.
4.It has certain bending resistance and torsion resistance.
5.It comes with a crash pad that can ease the impact.
