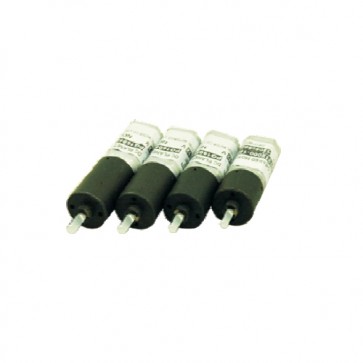

Description
Details
Typical Applications
Optical equipment,Montitoring cameras,Kind of figer-electroni locks,Automatic energy
savingbath,Water IC card,Toys and gifts,Office equipment,Household appliances,Automatic
actuator.
| Gearbox Data | |||||
| No. of stages | 1 stages reduction | 2 stages reduction | 3 stages reduction | 4 stages reduction | 5 stages reduction |
| Reduction ratio | 3.5, 4 | 12.3, 16, 19 | 42.8, 64, 90 | 150, 256, 304, 361, 428 |
712, 1024, 1263, 1444, 1500, 2036 |
| Gearbox length "L"mm | 13.7 | 17.3 | 20.9 | 24.5 | 28.1 |
| Max.Gear running torque | 1.0Kgf.cm | 1.5Kgf.cm | 4.0Kgf.cm | 4.0Kgf.cm | 4.0Kgf.cm |
| Max.Gear breaking torque | 3.0Kgf.cm | 4.5Kgf.cm | 12Kgf.cm | 12Kgf.cm | 12Kgf.cm |
| Gearing efficiency | 90% | 81% | 73% | 65% | 59% |
| Motor data | |||||||||
| Motor name | Rated Volt.(V) | No load | Load torque | Stall torque | |||||
| Current | Speed | Current | Speed | Torque | Output power | Torque | Current | ||
| mA | r/min | mA | r/min | gf.cm | W | gf.cm | mA | ||
| 171004 | 3 | ≤120 | 9200 | ≤370 | 7100 | 7.3 | 0.5 | 32.2 | 1250 |
| 171005 | 6 | ≤50 | 9000 | ≤180 | 7000 | 7.5 | 0.52 | 32 | 600 |
| 171006 | 12 | ≤20 | 9400 | ≤90 | 7200 | 7.2 | 0.5 | 31.4 | 280 |
| 171007 | 12 | ≤36 | 12000 | ≤160 | 9600 | 10 | 0.96 | 50 | 580 |
| 171008 | 24 | ≤30 | 14000 | ≤100 | 10500 | 12 | 1.2 | 49 | 350 |
| After connecting motor and gearbox which is named gearmotor the output torque:motor torque X reduction ratio X gearing efficiency;output speed:motor speed/reduction ratio. | |||||||||
Note
1.Motor can be installed with magnetic encorder.
2.Standard output shaft after reducing:φ 3.0mm,other size of the output shaft can make as client
request.
3.Chart only for reference,products shall prevail the entity.
