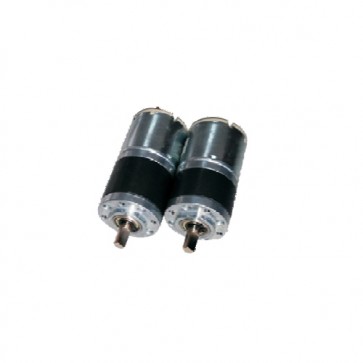

Description
Details
Typical Applications
Auto shutter,Micro CNC equipment,Central air-conditioning valve,Robots,Towel
dispensers,Limelight,Automatic closetbowl special vavle,Electric advertising,Angular
telescope,Office equipment,Household appliances,Automatic actuator.
| Gearbox Data | |||||
| No. of stages | 1 stages reduction | 2 stages reduction | 3 stages reduction | 4 stages reduction | 5 stages reduction |
| Reduction ratio | 4, 4.75 | 16, 19, 22.5 | 64, 76, 90, 107 | 256, 304, 361 428, 509 |
1024, 1263, 1444 1500, 2036, 2418 |
| Gearbox length "L"mm | 20.7 | 26.4 | 32.2 | 38 | 43.8 |
| Max.Gear running torque | 5.0Kgf.cm | 10.0Kgf.cm | 25Kgf.cm | 25Kgf.cm | 25Kgf.cm |
| Max.Gear breaking torque | 15.0Kgf.cm | 30.0Kgf.cm | 75Kgf.cm | 75Kgf.cm | 75Kgf.cm |
| Gearing efficiency | 90% | 81% | 73% | 65% | 59% |
| Motor data | |||||||||
| Motor name | Rated Volt.(V) | No load | Load torque | Stall torque | |||||
| Current | Speed | Current | Speed | Torque | Output power | Torque | Current | ||
| mA | r/min | mA | r/min | gf.cm | W | gf.cm | mA | ||
| 171034 | 12 | ≤90 | 4500 | ≤220 | 3589 | 67.6 | 2.5 | 358 | 1500 |
| 171035 | 12 | ≤140 | 7000 | ≤700 | 5647 | 79.7 | 4.6 | 472 | 3030 |
| 171036 | 24 | ≤50 | 4500 | ≤160 | 3539 | 60 | 2.1 | 281 | 596 |
| 171037 | 24 | ≤70 | 6700 | ≤280 | 4500 | 78.4 | 4.23 | 381 | 1140 |
| After connecting motor and gearbox which is named gearmotor the output torque:motor torque X reduction ratio X gearing efficiency;output speed:motor speed/reduction ratio. | |||||||||
Note
1.Motor can be installed with magnetic encorder.
2.Standard output shaft after reducing:φ 6.0mm,other size of the output shaft can make as client
request.
3.Chart only for reference,products shall prevail the entity.
