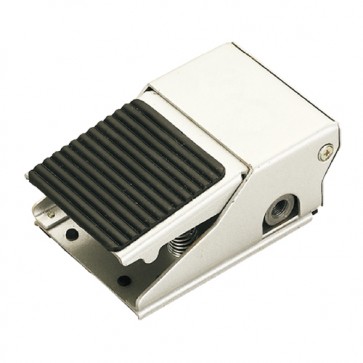

Direct drive type foot air valve high quality description:
Name: Foot Valve

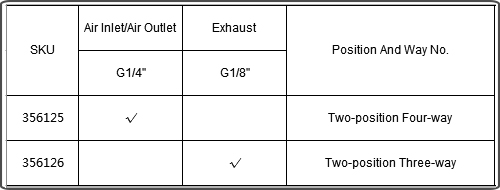

SKU: 356125-356126
Effective Sectional Area: 18mm2
Working Medium: Air(40 Micron Filtered)
Operating Method: Direct Drive Type
Working Pressure Range: 0~1.0MPa
Working Temperature: 0~60℃
Direct drive type foot air valve high quality features:
1. Aluminum pedal, stable and reliable.
2. The use of processing center valve body, processing more accurate.
3. High-precision finishing process processing valve hole, longer service life.
4. Using the overall slot slide valve structure, the operation more compact.
5. Full range, guaranteed device.
Direct drive type foot air valve high quality advantages:
Adopting the gas as the power source, so the pneumatic control valve is relatively safe. And if it were leaking, the gas can be discharged directly. Compared with the hydraulic and electric medium, It do not have any pollution to the environment, It has a high security at the same time. The foot valve has the advantages of small size, beautiful appearance , longer service life and so on. It combines all the advantages of the check valves for the most efficient, cost competitive foot valves in the marketplace. The use of processing center valve body, processing more accurate. And it using the overall slot slide valve structure, the operation more compact.
