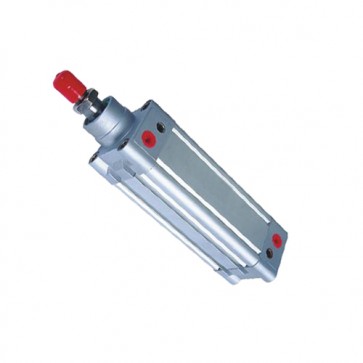

DNC pneumatic cylinder with hollow piston rod :
| SKU | 357200 | 357201 | 357202 | 357203 | 357204 | 357205 | 357206 | 357207 | 357208 | |
| Bore | 32 | 40 | 50 | 63 | 80 | 100 | ||||
| Working Medium | Fitered Air | |||||||||
| Motion Pattern | Double Action | |||||||||
| Comprassion Pressure | 1.5Mpa | |||||||||
| Max.Operating Pressure | 1.0Mpa | |||||||||
| Min.Operating Pressure | 0.1Mpa | |||||||||
| Buffer | Air Buffer(Standard) | |||||||||
| Ambient Temperature Range | 5-60℃ | |||||||||
| Operating Speed Range | 50-500mm/s | |||||||||
| Operating Life | Not less than 4000Km | |||||||||
| Lubricate | Not Necessary | |||||||||
| Port Size | 1/8" | 1/4" | 3/8" | 1/2" | ||||||
Feature:
1.Y-Type one-way sealing structure has compensation function and long life.
2.Square aluminum tube without tie rod which has good anti-corrosion performance.
3.There are a variety of sizes can be chosen.
4.It can accurately locate and be flexible.
5.The cylinder cushion adjusts stably and the start pressure is low.
