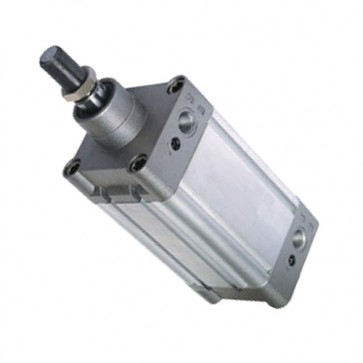

DNC tie rod hydraulic cylinder Double Action Type :
| SKU | 357127 | 357128 | 357129 | 357130 | 357131 | 357132 | |
| Bore | 32 | 40 | 50 | 63 | 80 | 100 | |
| Motion Pattern | Double Action | ||||||
| Working Medium | Air | ||||||
| Operating Pressure | 0.1-0.9Mpa(1-9kgf/cm2) | ||||||
| Ensured Pressure Resistance | 1.35Mpa(13.5kgf/cm2) | ||||||
| Working Temperature Range | -5-70℃ | ||||||
| Buffer Type | Adjustable Buffer | ||||||
| Buffer Stroke | 24 | 32 | |||||
| Port Size | 1/8" | 1/4" | 3/8" | 1/2" | |||
Feature:
1.There are a variety of specifications can be choosen.
2.It has Y-Type one-way seal structure,compensation function and long life.
3.Square aluminum tube without tie rod which has good anti-corrosion performance.
4.System composition is very simple.
5.It cushions stably and has low start-up pressure.
