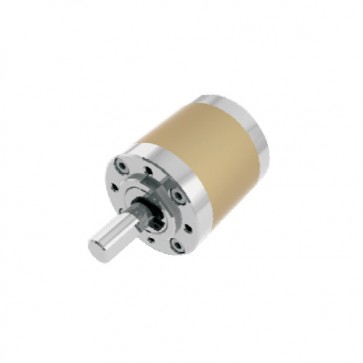

Housing material:Metal.
Backlash,at no-load:≤1.2°.
Bearing at output:Ball bearings.
Radial play of shaft:≤0.05mm.
Thrust play shaft:≤0.3mm.
Attention:The broken torque of the gearbox is 150kgf.com.When the motors using at low speed,high gear ratio,please choose low power motors,and no protection measurements.
| Pinion Specifications | ||
| Module | 0.5 | 0.5 |
| No. of teeth | 11 | 17 |
| Pressure angle | 20° | |
| Hole dimameter | φ1.98, φ2.28, φ3.14 | |
| Reduction ratio | 5.2, 26.9, 139 516, 721, 2672, 3736 |
3.7, 13.7, 19.2, 50.9, 99.5, 188 264, 369, 699, 977, 1367, 1911 |
| Operating temperature range | -10℃~+60℃ | |
| Operating relative humidity | 20%~85%RH | |
| Gearboxes Specifications | |||||
| Reduction ratio | Rated tolerance torque | Max breaking torque | Efficiency | No. of stages | Gearbox Length "L"mm |
| 3.7, 5.2 | 10.0kgf.cm | 32.0kgf.cm | 90% | 1 | 25.1 |
| 13.7, 19.2, 26.9 | 20.0kgf.cm | 60.0kgf.cm | 81% | 2 | 32.3 |
| 50.9, 71.2, 99.5, 139 | 50.0kgf.cm | 150.0kgf.cm | 73% | 3 | 38.5 |
| 188, 264, 369, 516, 721 | 50.0kgf.cm | 150.0kgf.cm | 65% | 4 | 44.7 |
| 699, 977, 1367, 1911, 2672 3736 |
50.0kgf.cm | 150.0kgf.cm | 59% | 5 | 50.9 |
