Description
Details

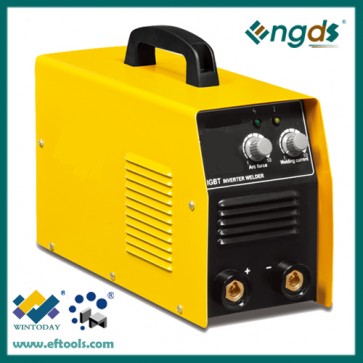

-Microprocessor control technology.
-Use IGBT technology,greatly improves the reliability of the machine.
-High duty cycle,greatly improves the efficiency of welder,energy saving.
-Small size,stable and durable quality.
| Item# | 353027 | 353028 | 353029 |
| Power voltage | 220-240V | 220-240V | 220-240V |
| Max input power | 5.2KVA | 6.0KVA | 8.2KVA |
| Efficiency | 83% | 83% | 83% |
| Power factor | 0.7 | 0.7 | 0.7 |
| Max No load voltage | 67V | 67V | 76V |
| Current range | 10-140A | 10-160A | 10-160A |
| Max current | 140@60% | 160@60% | 200@60% |
| Current at 100% | 108A | 124A | 155A |
| Usable electrode | 1.64.0-MM | 1.6-4.0MM | 5.0MM |
| Insulation class | F | F | F |
| Protection class | IP21S | IP21S | IP21S |
| Weight | 4.5/5.4KG | 5.4/6KG | 8.5/9.8KG |
| Size | 360X235X310mm | 360X235X310mm | 460X255X355mm |
Packing&Shipping
According to the customer's need,we ship goods by air,sea and express.
Packiing:Standard Carton.
Delivery Detail:30-35 days after received the 30 percent deposit.
