Description
Details

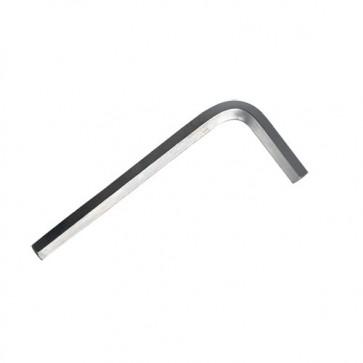

Single various sizes universal allen torque wrench Descriptions:
Name: Single various sizes universal allen torque wrench
SKU: 351062-351087
Material: Stainless Steel
Head Type: Flat
Size: Available in various sizes
Technical: Heat Treatment
Surface Finish: Nickel-plated
| SKU | Size | Side width | Diagnal width | Short length | Radius | Chamfer | |||
| Max | |||||||||
| Max | Min | Max | Min | Max | Min | Min | |||
| 351062 | 1.5 | 1.500 | 1.470 | 1.690 | 1.640 | 14 | 13 | 1.5 | 0.14 |
| 351063 | 2 | 2.000 | 1.970 | 2.250 | 2.200 | 16 | 15 | 2.0 | 0.14 |
| 351064 | 2.5 | 2.500 | 2.470 | 2.820 | 2.770 | 18 | 17 | 2.5 | 0.14 |
| 351065 | 3 | 3.000 | 2.960 | 3.399 | 3.340 | 21 | 20 | 3.0 | 0.18 |
| 351066 | 4 | 4.000 | 3.960 | 4.532 | 4.470 | 25 | 23 | 4.0 | 0.24 |
| 351067 | 5 | 5.000 | 4.960 | 5.690 | 5.630 | 28 | 26 | 5.0 | 0.3 |
| 351068 | 6 | 6.000 | 5.950 | 6.828 | 6.670 | 32 | 30 | 6.0 | 0.36 |
| 351069 | 8 | 8.000 | 7.950 | 9.136 | 9.030 | 36 | 34 | 8.0 | 0.49 |
| 351070 | 10 | 10.000 | 9.950 | 11.470 | 11.340 | 40 | 38 | 10.0 | 0.62 |
| 351071 | 12 | 12.000 | 11.950 | 13.764 | 13.590 | 45 | 43 | 12.0 | 0.76 |
| 351072 | 14 | 14.000 | 13.930 | 16.058 | 15.880 | 55 | 52 | 14.0 | 0.85 |
| 351073 | 16 | 16.000 | 15.930 | 18.210 | 18.110 | 57 | 55 | 16.0 | 0.95 |
| 351074 | 17 | 17.000 | 16.930 | 19.499 | 19.300 | 60 | 57 | 17.0 | 1.04 |
| 351075 | 18 | 18.000 | 17.930 | 20.499 | 20.390 | 65 | 59 | 18.0 | 1.1 |
| 351076 | 19 | 19.000 | 18.930 | 21.793 | 21.580 | 70 | 62 | 19.0 | 1.16 |
| 351077 | 20 | 20.000 | 19.930 | 22.940 | 22.716 | 72 | 65 | 20.0 | 1.26 |
| 351078 | 22 | 22.000 | 21.930 | 25.234 | 25.000 | 80 | 70 | 22.0 | 1.36 |
| 351079 | 24 | 24.000 | 23.930 | 27.525 | 27.240 | 90 | 80 | 24.0 | 1.49 |
| 351080 | 27 | 27.000 | 26.870 | 30.969 | 30.710 | 100 | 85 | 27.0 | 1.68 |
| 351081 | 30 | 30.000 | 29.840 | 34.410 | 34.122 | 120 | 95 | 30.0 | 1.84 |
| 351082 | 32 | 32.000 | 31.840 | 36.704 | 36.430 | 125 | 100 | 32.0 | 1.99 |
| 351083 | 34 | 34.000 | 33.840 | 39.998 | 38.706 | 130 | 110 | 34.0 | 2.12 |
| 351084 | 36 | 36.000 | 40.800 | 41.292 | 40.900 | 135 | 115 | 36.0 | 2.25 |
| 351085 | 41 | 41.000 | 40.800 | 47.027 | 46.676 | 140 | 120 | ||
| 351086 | 46 | 46.000 | 45.700 | 52.760 | 53.368 | 155 | 130 | ||
| 351087 | 50 | 50.000 | 49.700 | 57.350 | 56.922 | 170 | 140 | ||
Single various sizes universal allen torque wrench Features:
1.Overall heat treatment,the maximum of hardness can reach HRC57.
2.The surface which is treated by nickel and chrome,beautiful and durable.
3.Allen torque wrench,It is made of CR-V Steel,longer life expectancy.
4.The introduction of Taiwan imported advanced technology,more scientific.
5.Both ends chamfering without burrs can be easily inserted into the nut.
Single various sizes universal allen torque wrench Advantages:
Why does virtually every piece of furniture / equipment needed to be equipped with Allen wrench? What are the advantages of hex key tools? Ok ,Let me tell you some point of our product. Single various sizes universal allen torque wrench is made of CR-V Steel,so it has a longer life expectancy.And we have introduced taiwanese imported technology so it is of high sicientificity. Besides,due to their unique shape and size, the application of these hex keys is highly specific. This is one of the ways in which they differ with other types of tools for this kind of job. Furthermore,Its six contact points also ensure a tight grip and allows for effective screw turning.
