Description
Details

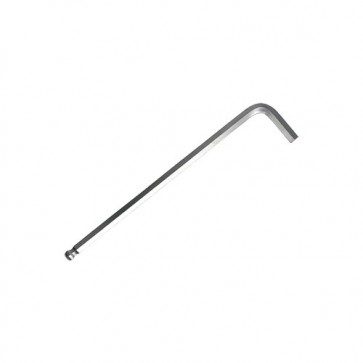

Single ball head long 2mm allen wrench Descriptions:
Name: Single ball head long 2mm allen wrench
SKU: 351035-351060
Material: Stainless Steel
Head Type: Ball
Size: Available in various sizes
Technical: Heat Treatment
Surface Finish: Nickel-plated
| SKU | Size | Side width | Diagnal width | Short length | Radius | Chamfer | |||
| Max | |||||||||
| Max | Min | Max | Min | Max | Min | Min | |||
| 351035 | 1.5 | 1.500 | 1.470 | 1.690 | 1.640 | 14 | 13 | 1.5 | 0.14 |
| 351036 | 2 | 2.000 | 1.970 | 2.250 | 2.200 | 16 | 15 | 2.0 | 0.14 |
| 351037 | 2.5 | 2.500 | 2.470 | 2.820 | 2.770 | 18 | 17 | 2.5 | 0.14 |
| 351038 | 3 | 3.000 | 2.960 | 3.399 | 3.340 | 21 | 20 | 3.0 | 0.18 |
| 351039 | 4 | 4.000 | 3.960 | 4.532 | 4.470 | 25 | 23 | 4.0 | 0.24 |
| 351040 | 5 | 5.000 | 4.960 | 5.690 | 5.630 | 28 | 26 | 5.0 | 0.3 |
| 351041 | 6 | 6.000 | 5.950 | 6.828 | 6.670 | 32 | 30 | 6.0 | 0.36 |
| 351042 | 8 | 8.000 | 7.950 | 9.136 | 9.030 | 36 | 34 | 8.0 | 0.49 |
| 351043 | 10 | 10.000 | 9.950 | 11.470 | 11.340 | 40 | 38 | 10.0 | 0.62 |
| 351044 | 12 | 12.000 | 11.950 | 13.764 | 13.590 | 45 | 43 | 12.0 | 0.76 |
| 351045 | 14 | 14.000 | 13.930 | 16.058 | 15.880 | 55 | 52 | 14.0 | 0.85 |
| 351046 | 16 | 16.000 | 15.930 | 18.210 | 18.110 | 57 | 55 | 16.0 | 0.95 |
| 351047 | 17 | 17.000 | 16.930 | 19.499 | 19.300 | 60 | 57 | 17.0 | 1.04 |
| 351048 | 18 | 18.000 | 17.930 | 20.499 | 20.390 | 65 | 59 | 18.0 | 1.1 |
| 351049 | 19 | 19.000 | 18.930 | 21.793 | 21.580 | 70 | 62 | 19.0 | 1.16 |
| 351050 | 20 | 20.000 | 19.930 | 22.940 | 22.716 | 72 | 65 | 20.0 | 1.26 |
| 351051 | 22 | 22.000 | 21.930 | 25.234 | 25.000 | 80 | 70 | 22.0 | 1.36 |
| 351052 | 24 | 24.000 | 23.930 | 27.525 | 27.240 | 90 | 80 | 24.0 | 1.49 |
| 351053 | 27 | 27.000 | 26.870 | 30.969 | 30.710 | 100 | 85 | 27.0 | 1.68 |
| 351054 | 30 | 30.000 | 29.840 | 34.410 | 34.122 | 120 | 95 | 30.0 | 1.84 |
| 351055 | 32 | 32.000 | 31.840 | 36.704 | 36.430 | 125 | 100 | 32.0 | 1.99 |
| 351056 | 34 | 34.000 | 33.840 | 39.998 | 38.706 | 130 | 110 | 34.0 | 2.12 |
| 351057 | 36 | 36.000 | 40.800 | 41.292 | 40.900 | 135 | 115 | 36.0 | 2.25 |
| 351058 | 41 | 41.000 | 40.800 | 47.027 | 46.676 | 140 | 120 | ||
| 351059 | 46 | 46.000 | 45.700 | 52.760 | 53.368 | 155 | 130 | ||
| 351060 | 50 | 50.000 | 49.700 | 57.350 | 56.922 | 170 | 140 | ||
Single ball head long 2mm allen wrench Features:
1.Overall heat treatment,the maximum of hardness can reach HRC57.
2.The surface which is treated by nickel and chrome,beautiful and durable.
3.2mm allen wrench,It is made of CR-V Steel,longer life expectancy.
4.The introduction of Taiwan imported advanced technology,more scientific.
5.Ball head can be in 25° narrow space,effectively solve the problem in the small space of work.
Single ball head long 2mm allen wrench Advantages:
Why does virtually every piece of furniture / equipment needed to be equipped with Allen wrench? What are the advantages of hex key tools? The hex key tools that’s together form the allen wrench set, are a set of six-sided tools that are used to drive screws and bolts, which have a special design to fit these keys. As for our single ball head long 2mm allen wrench, the advantages can be listed as follows.On one thing,due to their unique shape and size, the application of these hex keys is highly specific. This is one of the ways in which they differ with other types of tools for this kind of job.On another, our allen key also have ball-ends for precision,featuring the versatility of a ball end, each of these hex keys delivers 28 extra degrees of access to bolts, so no matter if you’re reaching deep into an engine compartment or are stretching around an appliance, you’ll have a solid hold on whichever fastener you reach for.
