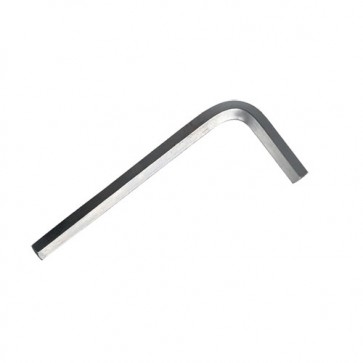

Single inch size flat head 5/16 allen wrench

Description

Details

Single inch size flat head 5/16 allen wrench Descriptions:

Name: Single inch size flat head 5/16 allen wrench
SKU: 351114-351132
Material: Stainless Steel
Head Type: Flat
Size: Available in various sizes
Technical: Heat Treatment
Surface Finish: Nickel-plated

SKU	Size		Side width		Diagnal width		Short length		Radius	Chamfer
			Side width		Diagnal width		Short length		Radius	Max
			Max	Min	Max	Min	Max	Min	Min	Max
351114	1/16	0.062	0.0625	0.0615	0.0701	0.0680	0.656	0.469	0.062	0.008
351115	5/64	0.078	0.0781	0.0771	0.0880	0.8590	0.703	0.516	0.078	0.008
351116	3/32	0.094	0.0937	0.0927	0.1058	0.1035	0.75	0.562	0.094	0.009
351117	7/64	0.109	0.1094	0.1079	0.1238	0.1210	0.797	0.609	0.109	0.014
351118	1/8	0.125	0.1250	0.1235	0.1418	0.1390	0.844	0.656	0.125	0.015
351119	9/64	0.141	0.1406	0.1391	0.1593	0.1566	0.891	0.703	0.141	0.016
351120	5/32	0.156	0.1562	0.1547	0.1744	0.1745	0.938	0.75	0.156	0.016
351121	3/16	0.188	0.1875	0.1860	0.2135	0.2105	1.031	0.844	0.188	0.022
351122	7/32	0.219	0.2178	0.2172	0.2490	0.2460	1.125	0.938	0.219	0.024
351123	1/4	0.250	0.2500	0.2485	0.2845	0.2815	1.219	1.031	0.250	0.03
351124	5/16	0.312	0.3125	0.3110	0.3570	0.3531	1.344	1.156	0.312	0.032
351125	3/8	0.375	0.3750	0.3735	0.4285	0.4238	1.469	1.281	0.375	0.044
351126	7/16	0.438	0.4375	0.4355	0.5005	0.4994	1.594	1.406	0.438	0.047
351127	1/2	0.500	0.5000	0.4975	0.5715	0.5650	1.719	1.531	0.500	0.05
351128	9/16	0.562	0.5625	0.5600	0.6420	0.6356	1.844	1.656	0.562	0.053
351129	5/8	0.625	0.625	0.6225	0.7146	0.7080	1.969	1.787	0.625	0.055
351130	3/4	0.750	0.7500	0.7470	0.8580	0.8512	2.219	2.031	0.750	0.07
351131	7/8	0.875	0.8750	0.8720	1.0020	0.9931	2.469	2.281	0.875	0.76
351132	1	1.000	1.000	0.9970	1.1470	1.1350	2.719	2.531	1.000	0.081

Single inch size flat head 5/16 allen wrench Features:

1.Overall heat treatment,the maximum of hardness can reach HRC57.
2.The surface which is treated by nickel and chrome,beautiful and durable.
3.5/16 allen wrench,It is made of CR-V Steel,longer life expectancy.
4.The introduction of Taiwan imported advanced technology,more scientific.
5.Both ends chamfering without burrs can be easily inserted into the nut.

Single inch size flat head 5/16 allen wrench Advantages:

Why does virtually every piece of furniture / equipment needed to be equipped with Allen wrench? What are the advantages of hex key tools? Ok ,Let me tell you some point of our product. Single inch size flat head 5/16 allen wrench is made of CR-V Steel,so it has a longer life expectancy.And we have introduced taiwanese imported technology so it is of high sicientificity. Besides,due to their unique shape and size, the application of these hex keys is highly specific. This is one of the ways in which they differ with other types of tools for this kind of job. Furthermore,Its six contact points also ensure a tight grip and allows for effective screw turning.
