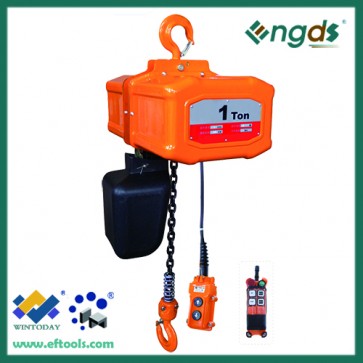

Description:
| Model | 200006 | 200007 | 200008 | 200009 | 200010 | |
| Capacity(T) | 0.25 | 0.5 | 1 | 2 | 2 | |
| Standard Lift(m) | 3 | 3 | 3 | 3 | 3 | |
| Lifting Speed(m/min) | 8 | 7 | 7 | 3.5 | 8 | |
| Motor Power(KW/HP) | 0.45/0.6 | 0.8/1 | 1.6/2 | 1.6/2 | 3/4 | |
| Power Supply(V) | 3 Phase/ 380V(50Hz) | |||||
| Control Voltage(V) | 24V | |||||
| Insulation Grade | F(155°) | |||||
| Rating | 40% | |||||
| Spec. of Chain | Φ5×15 | Φ7.1×21 | Φ9×27 | |||
| No. of Chain | 1 | 1 | 1 | 2 | 1 | |
| Working Level | M4 | M4 | M4 | M4 | M4 | |
| Running Test Load(T) | 0.31 | 0.625 | 1.25 | 2.5 | 2.5 | |
| Length of Cable(m) | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | |
| Net Weight(Kg) | 25 | 50 | 55 | 60 | 90 | |
| Hmin(mm) | 430 | 500 | 520 | 630 | 650 | |
| Extra weight per meter of extra lift(Kg) | 0.55 | 1.1 | 1.1 | 2.2 | 1.8 | |
| Dimension(mm) | A | 210 | 245 | 245 | 245 | 265 |
| B | 210 | 245 | 245 | 245 | 265 | |
| C | 116 | 158 | 158 | 124 | 127 | |
| D | 104 | 142 | 142 | 176 | 205 | |
| E | 262 | 350 | 350 | 350 | 393 | |
| F | 500 | 600 | 600 | 610 | 738 | |
Advantages:
1.The power supply could be customized.
2.This product has CE and GS certifications. Also it has ISO9001 authentication.
3.This product is combining and applying technology from Japan and Germany.
4.The small size and light weight makes the product easy to take
.
