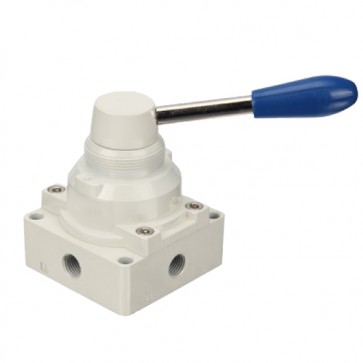

Hand switching valve manual pneumatic valve description:
Name: Hand Switching Valve

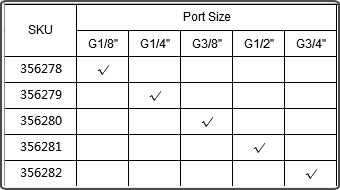

SKU: 356278-356282
Position And Way No.: Two-position Four-way/Three-position Four-way
Working Medium: Air(40 Micron Filtered)
Highest Working Pressure: 1.0MPa
Ensured Pressure Resistance: 1.2MPa
Working Temperature Range: -5~+60℃
Working Angle: 90°
Hand switching valve manual pneumatic valve features:
1. Side connection and bottom connection are available for all specifications for use’s option.
2. Commonly used to control the implementation of components such as commutation.
3. Reversing rotation is relatively light and the positioning is also accurate.
4. Flexible installation, it can be installed directly on the line or in the control panel.
5. Few consumables, long durability and long working life.
Hand switching valve manual pneumatic valve advantages:
Adopting the gas as the power source, so the pneumatic control valve is relatively safe. And if it were leaking, the gas can be discharged directly. Compared with the hydraulic and electric medium, It do not have any pollution to the environment, It has a high security at the same time. A manual valve is generally the least expensive of any valve configuration and has low maintenance costs. In addition to quick, quarter turn on-off operation, manual valves are compact, require no lubrication, and give tight sealing with low torque. Side connection and bottom connection are available for all specifications for use’s option. And it commonly used to control the implementation of components such as commutation.
