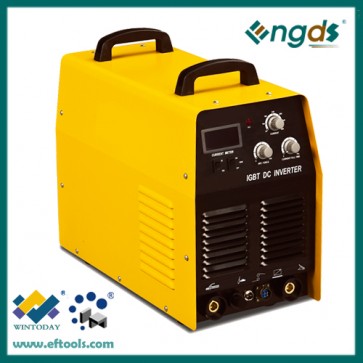

Description
Details
-Adopting IGBT technology.
-Output current is sufficient.
-Three protection design(waterproof,dustproof and anti-erosion functions),on one hand it can
improve inside eletrical components working efficiency,on the other hand fan cooling can reach
100%,greatly improve duty cycle.
| Item# | 353157 | 353158 |
| Power voltage(3PH) | 380-400V | 380-400V |
| Rated input power | 9.75KVA | 14.3KVA |
| Input voltage frequency | 50/60HZ | 50/60HZ |
| No-load voltage | 60V | 60V |
| Output current range | 10-315A | 10-400A |
| Rated output voltage | 22.6V | 26V |
| Duty cycle | 60% | 60% |
| Efficiency | 85% | 85% |
| Insulation class | F | F |
| Protection class | IP21S | IP21S |
| Weight | 27.5kg | 28kg |
| Size | 630X370X500mm | 630X370X500mm |
Packing&Shipping
According to the customer's need,we ship goods by air,sea and express.
 Packiing:Standard Carton.
Delivery Detail:30-35 days after received the 30 percent deposit.
