High Quality Non Return Valve Catalogue Description:

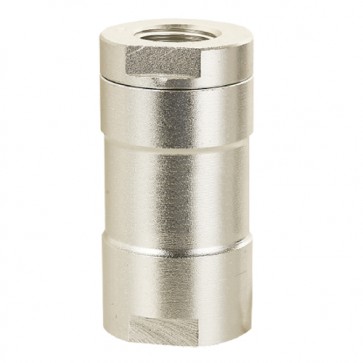

Name: Check Valve

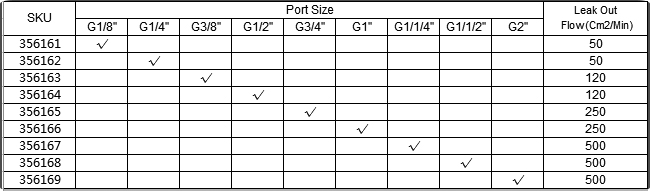

SKU: 356161-356169
Working Pressure: 0.05~0.8Mpa
Condition Temperature: -10~55℃
Medium Temperature: 0~55℃
Starup Ability: ≤0.03Mpa
Response Times(Sec): 0.03
Natural Life(Thousand): ≥150
High Quality Non Return Valve Catalogue Features:
1. Easy to manufacture and repair, low cost.
2. Compared with the hydraulic, pneumatic mode can be used in high temperature occasions.
3. The check valve is used where the reverse flow is not allowed.
4. Stainless steel spring, low return water pressure.
High Quality Non Return Valve Catalogue Advantages:
Adopting the gas as the power source, so the pneumatic control valve is relatively safe. And if it were leaking, the gas can be discharged directly. Compared with the hydraulic and electric medium, It do not have any pollution to the environment, It has a high security at the same time. A check valve allows flow in one direction and automatically prevents back flow (reverse flow) when fluid in the line reverses direction. They are self-actuated and require no external means to actuate the valve either to open or close. They are fast acting. Besides, it is easy to manufacture and repair. And compared with the hydraulic, pneumatic mode can be used in high temperature occasions.
