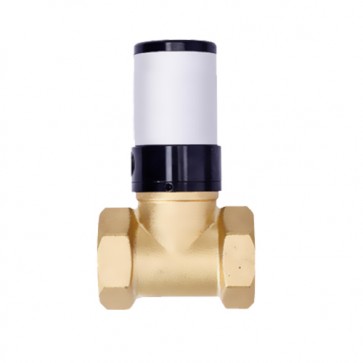

High quality pneumatic air control valve description:
Name: Air Control Valve

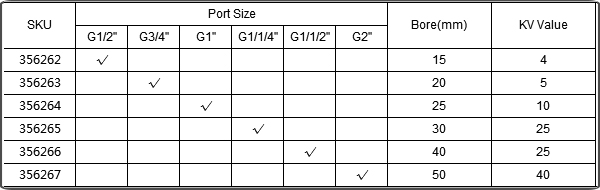

SKU: 356262-356267
Aperture of Flow Rate: 20mm
Working Medium: Air,Water,Oil,Liquefed gas,Free-running viscosity liquid
Fluid Pressure Range: 0~1.0MPa
Working Temperature: NBR:-5~80℃,EPDM/VITON:-5~150℃
High quality pneumatic air control valve features:
1. There are a variety of standard voltage levels to choose from.
2. Friction resistance is small, starting air pressure is low.
3. Due to self-loop, the reaction is more sensitive.
4. Compared with the hydraulic, pneumatic mode can be used in high temperature occasions.
High quality pneumatic air control valve advantages:
Adopting the gas as the power source, so the pneumatic control valve is relatively safe. And if it were leaking, the gas can be discharged directly. Compared with the hydraulic and electric medium, It do not have any pollution to the environment, It has a high security at the same time. Air Valves perform two important functions in a piping system. They maintain system design efficiency and provide system protection. System efficiency is maintained by venting air via the air valves from the system that can restrict flow and increase pumping costs. Friction resistance is small, so starting air pressure is low. And due to self-loop, the reaction is more sensitive.
