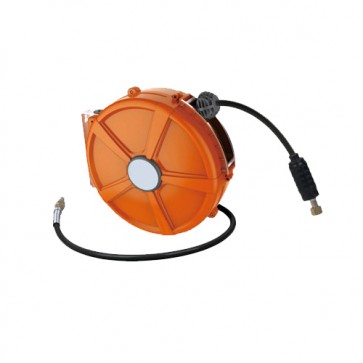

High quality retracting pneumatic hose reel deacription
| SKU | 606013 | 606014 | 606015 |
| Specification | D8 mm | D10 mm | D12 mm |
| Input Hose Length | 1.0m | ||
| Output Hose length | 10/ 12/ 15/ 20/ 30m(optional) | ||
| Working Pressure | 18 bar | ||
| Burst Pressure | 60 bar | ||
| Packing | 42x17x34 cm | ||
| N.W. | 4.2 kg | ||
| G.W. | 4.5 kg | ||
| Color | yellow/ blue/ red/ black/ gray | ||
High quality retracting pneumatic hose reel feature
1. It is safer with the protection of the hose to avoid electric leakage.
2. The pneumatic hose reel can improve the working efficiency without mess.
3. It can incrase the working range with the function of swing 180 degrees.
4. The bilateral ball bearings is well to increase the effect of lubraction to prolong the service life.
High quality retracting pneumatic hose reel advantage
The located ball can detent automatically. It will avoid to full retracting. So the located ball is necessary. It can adjust the length you need to keep out. It is more humanized to avoid the wrong operation. And the pneumatic hose reel with the located ball can improve the work efficiency. Before that, the pipe need to clear up manually. It with a strong possibly to knot. It will waste more time to clear up again and manual operation is adagissimo. However, The pneumatic hose reel has the function of automatic retracta will be the operation easier.
