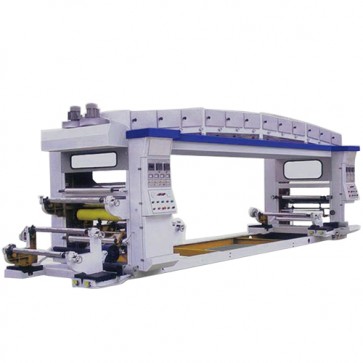

High Speed Professional Dry Type Laminating Machine 710072

- This kind of the dry type laminating machine adopts frequency conversion motor drive.
- The first unwinding adopts the single-station discharging, photoelectricity correction and magnetic power brake to control the tension.
- The coating unit of the dry type laminating machine adopts an anilox roller coating method with a scraper, and a scraper three-position adjustment structure.
- Three-stage gas-temperature constant temperature oven, into the wind layered negative pressure design, the second return air, both to save energy and reduce the residual solvent content.
- The compound pressure roller and the coating pressure roller evenly adopt the double cylinder to press together.
- Winding with dual torque motor.

SKU: 710072

about Engdas Tools

engdas company

Description

Details

High Speed Professional Dry Type Laminating Machine

SKU 710072 710073 710074
Wicth of laminating(mm) 600  800 1000
Laminating stratification(layers) 2 2 2
Laminating speed(m/min) 10-70 10-70 10-70
Diameter of roll material(mm) 600 600 600
Oven temperate(℃) 110 110 110
Total power(kw) 36 40 44
Weight(kg) 4000 4700 5400
Overall dimension(m) 7.5x1.7x2.7 7.5x1.9x2.7 7.5x2.1x2.7



Dry type laminating machine is mainly applied to two-layer or multi-layer composite materials such as BOPP, PET, nylon, CPP, CPE, aluminum foil and so on. It can form a kind of packaging material, which is high strength, high freshness and cooking resistance.


Dry Type Laminating Machine Features
- This kind of the dry type laminating machine adopts frequency conversion motor drive.
- The first unwinding adopts the single-station discharging, photoelectricity correction and magnetic power brake to control the tension.
- The coating unit of the dry type laminating machine adopts an anilox roller coating method with a scraper, and a scraper three-position adjustment structure.
- Three-stage gas-temperature constant temperature oven, into the wind layered negative pressure design, the second return air, both to save energy and reduce the residual solvent content.
- The compound pressure roller and the coating pressure roller evenly adopt the double cylinder to press together.
- Winding with dual torque motor.


Dry Type Laminating Machine Production Process
1. Preparation: The base material along the guide roller installed, while the proportion of the deployment of the adhesive is good, start the oven heating system, when the corresponding set temperature, and then open the drive motor, you can start coating production.
2. Coating Process: The unwinding device substrate after an anilox roller, the coating, and then through the drying tunnel drying, that is to complete the coating process.
3. Compound: The EPC gas-liquid correction into the composite part, and with the second part of the roll-off part of the base material to achieve a composite process.
4. Cooling Packing: After cooling packing, the entire production process of the substrate is completed.
