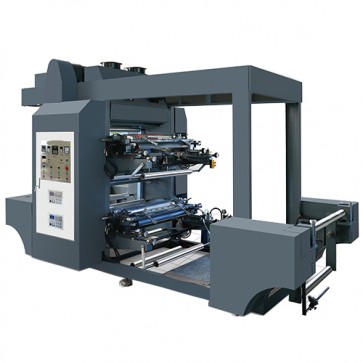

High Speed Two/Four Colors Stack Flexographic Machine 710030

Satellite flexographic printing machine can be adapted to a range of paper, up to 150 meters per minute.The printing machine can help customers increase productivity, and get more profit. The new satellite flexographic printing machine adopts the center roller embossing, chromatic high precision. It has high accuracy, and improve the printing quality. Satellite flexographic printing machine has a wide range of applications. The machine can be printing a variety of materials. It can print two/four/six colors of the material.

SKU: 710030

about Engdas Tools

engdas company

Description

Details

Two/Four/Six Colors Satellite Flexographic Printing Machine

SKU  Max. width of material(mm) Max. printing speed(m/min) Max. printing width(mm) Thickness of plate(mm) Suitable material Machine weight(kg) Printing color Machine dimension(m)
710030 600 10-100 560 2.38 Papers, films, no-woven farbic, foils. 1600 2 3.2x1.4x2.0
710031

 800

10-100

760

2.38

Papers, films, no-woven farbic, foils.

1800

2

3.2x1.6x2.0

710032 1000 10-100 960 2.38 Papers, films, no-woven farbic, foils. 2000 2 3.2x1.8x2.0
710033 600 10-100 560 2.38 Papers, films, no-woven farbic, foils. 4500 4 5.3x1.9x2.5
710034 800 10-100 760 2.38 Papers, films, no-woven farbic, foils. 5000 4 5.3x2.1x2.5
710035 1000 10-100 960 2.38 Papers, films, no-woven farbic, foils. 5500 4 5.3x2.3x2.5

Stack flexographic machine sometimes is also called accumulated flexographic machine. There are independent printing unit up and down, arranges at one or both ends of the main wall panel of the printing machine. Or install various colors printing units on the rack.Each printing unit is rotated by a gear mounted on the main wall panel. Stack flexographic machine can print 1-8 colors, but is usually 6 colors.

Stack flexographic machine is in the host on both sides of the monochromatic unit overlap each other for printing. Each monochrome unit has a separate impression cylinder. This printing machine can be positive and negative printing, but the precision is poor, not suitable for printing larger or thinner print media.Stacking is the simplest structure and the cheapest flexographic method.

Stack flexographic is a multi-effective printing unit layer by layer to the upper and lower combinations of equipment assembled. In a stack flexographic machine, each printing unit has its own impression cylinder. And its printing units are independent of each other, arranged up and down, and occupy a small footprint. The printing machine is mainly used for hand-held shopping bags and vest bags. Simple garment bags, electronic components and other packaging products can be also printed.
