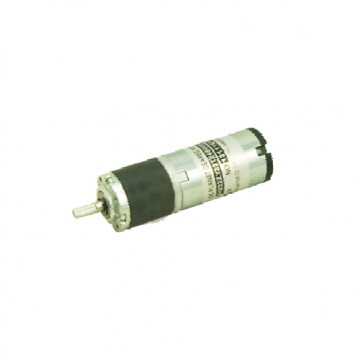

Description
Details
Typical Applications
Optical equipment,Montitoring cameras,Kind of figer-electroni locks,Automatic energy
savingbath,Water IC card,Toys and gifts,Office equipment,Household appliances,Automatic
actuator.
| Gearbox Data | |||||
| No. of stages | 1 stages reduction | 2 stages reduction | 3 stages reduction | 4 stages reduction | 5 stages reduction |
| Reduction ratio | 3.5, 4 | 12.3, 16, 19 | 42.8, 64, 90 | 150, 256, 304, 361, 428 |
712, 1024, 1263, 1444, 1500, 2036 |
| Gearbox length "L"mm | 10.8 | 14.4 | 18.0 | 21.6 | 258.2 |
| Max.Gear running torque | 1.0Kgf.cm | 2.0Kgf.cm | 4.0Kgf.cm | 4.0Kgf.cm | 4.0Kgf.cm |
| Max.Gear breaking torque | 3.0Kgf.cm | 6Kgf.cm | 12Kgf.cm | 12Kgf.cm | 12Kgf.cm |
| Gearing efficiency | 90% | 81% | 73% | 65% | 59% |
| Motor data | |||||||||
| Motor name | Rated Volt.(V) | No load | Load torque | Stall torque | |||||
| Current | Speed | Current | Speed | Torque | Output power | Torque | Current | ||
| mA | r/min | mA | r/min | gf.cm | W | gf.cm | mA | ||
| 171016 | 12 | ≤60 | 3000 | ≤190 | 2200 | 54 | 1.2 | 160 | 600 |
| 171017 | 12 | ≤100 | 6000 | ≤650 | 4800 | 87 | 4.2 | 370 | 2100 |
| 171018 | 24 | ≤60 | 6000 | ≤320 | 4950 | 80 | 4.0 | 360 | 1100 |
| 171019 | 12 | ≤65 | 3000 | ≤450 | 4700 | 35 | 1.6 | 160 | 1650 |
| 171020 | 24 | ≤40 | 6000 | ≤270 | 4800 | 36 | 1.7 | 150 | 900 |
| After connecting motor and gearbox which is named gearmotor the output torque:motor torque X reduction ratio X gearing efficiency;output speed:motor speed/reduction ratio. | |||||||||
Note
1.Motor can be installed with magnetic encorder.
2.Standard output shaft after reducing:φ 3.0mm,other size of the output shaft can make as client
request.
3.Chart only for reference,products shall prevail the entity.
